Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS
Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS
Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS
Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS
Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS
Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS
Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS

Vertiv AS3A0NCUGNNXLKB Liebert APS 5kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS

$13,931.69 $21,477.00
Brand: VertivReviews
You save $7,545.31 (35%)
Special order products normally take 10–14 business days to ship, depending on vendor availability.
Oversized item: additional shipping charges may apply

Because of its size or weight, this item may need freight or special handling. After you place your order, a Silarius rep will contact you to confirm any extra shipping cost before it ships, so there are no surprises. Want the exact cost first? Chat with us now or email us.

  • Special order: no returns without a manufacturer RMA. Wrong or defective items are always covered.
    Return terms: you pay shipping both ways, 3% card fee, 30% if opened
    • 30 daysfrom delivery to start a return
    • Shipping both waysto you and back to us, paid by you
    • 3% card feededucted from every refund
    • 30% open-box feeif the box has been opened
    • Special ordersno returns without a manufacturer RMA
    • Discontinued itemsnot returnable

    Wrong or defective items, and items damaged in transit with Package Protection, are always covered with no fees. Full return policy

  • Manufacturer's warranty from Vertiv. Warranty
  • Volume order? Get a quote: chat with us, email us, or add it to your cart and download a PDF quote.
D Questions about this product? Daniel and the team reply fast, usually within minutes. Chat with us now or email us.
Building out an IT closet? The free Site Planner sizes the rack, battery backup and switches for a whole building’s security system. Plan it free
More information View images
Reviews

Single/Split Phase, Low TCO, Pay As You Grow

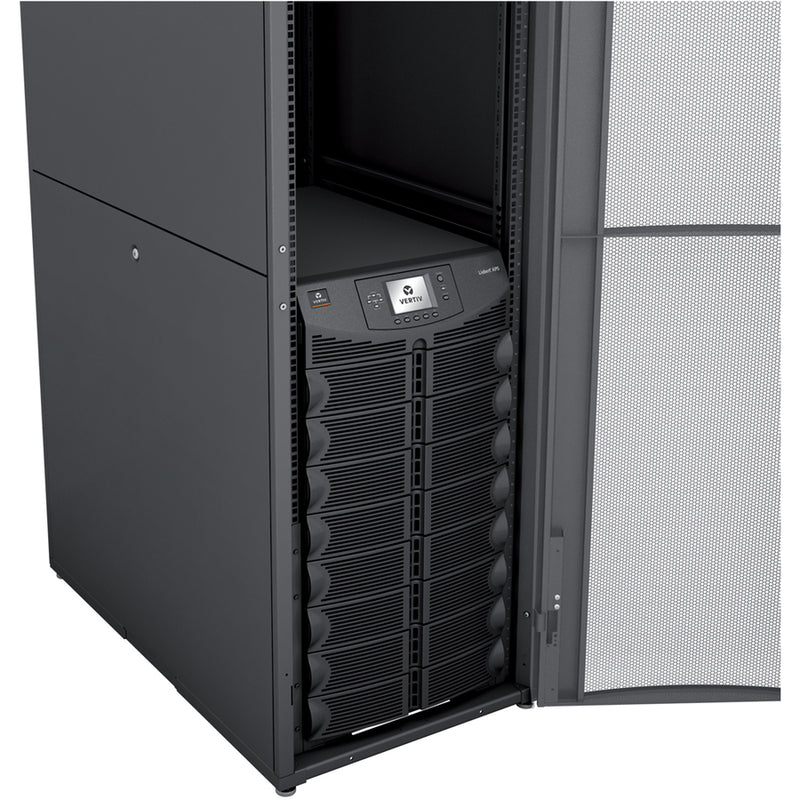

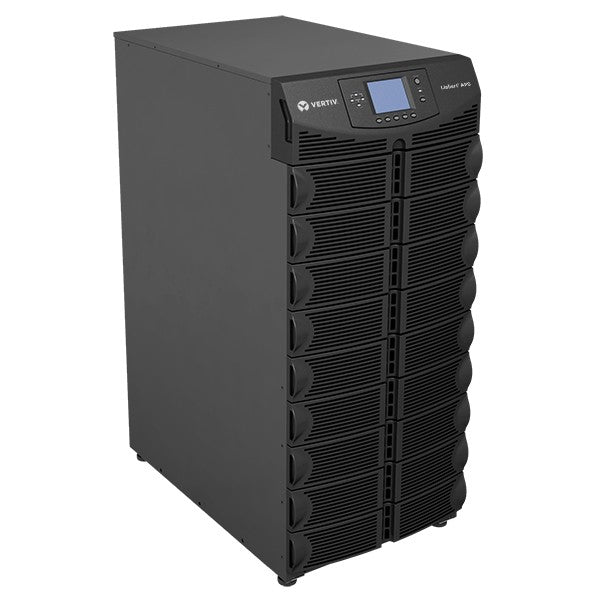

The Vertiv Liebert APS 5-20kVA Scalable to 20kVA N+1 is a modular online double conversion uninterruptible power supply (UPS) designed for room or row-based applications. It comes in 5kVA/4.5kW increments whether it is a 208V single phase UPS or 120/208V split phase UPS, with step-down transformer or transformer-free. Liebert APS UPS offers module-level redundancy that allows you to maintain flexibility for the future while ensuring maximum power availability to your critical systems. This UPS provides hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. This modular UPS includes these features:

  • Online Double Conversion Technology in this UPS means power protection and conditioning.
  • User replaceable and hot-swappable
  • Up to 92% Energy Efficiency, which supports sustainability and reduces TCO
  • With on-board controls, modules can take itself offline without causing unit to shutdown
  • Has intelligent battery management including temperature-compensated charging to prolong battery life
  • Can operate in a temporary overload state to up to 200% load.


GENERAL INFORMATION
Manufacturer
Vertiv
Manufacturer Part Number
AS3A0NCUGNNXLKB
Brand Name
Liebert
Product Line
APS
Product Series
AS3
Product Name
APS 5kVA Scalable to 15kVA N+1
Product Type
Dual Conversion Online UPS
TECHNICAL INFORMATION
Plug/Connector Type
Hard Wire 3-wire
Phase
Single Phase
Application/Usage
Mission Critical Equipment
POWER DESCRIPTION
Load Capacity
5000 VA/4500 W
Input Voltage
230 V AC
Input Voltage Range
120 V AC - 280 V AC
Input Frequency
40 Hz to 70 Hz
Output Frequency
50 Hz to 60 Hz
Waveform Type
Pure Sine Wave
CONTROLS/INDICATORS
Status Indicators

LCD Display
INTERFACES/PORTS
Serial Port
Yes
VGA
No
Modem (RJ-11)
No
Network (RJ-45)
No
EPO Port
Yes
USB (HID Compliant) Port
Yes
BATTERY INFORMATION
Battery Characteristics
Valve-regulated
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
5 Minute
Backup/Run Time (Half Load)
14 Minute
Hot Swappable
Yes
ENVIRONMENTAL CONDITIONS
Environmental Sensors
  • Leak Detection Sensor
  • Temperature Sensor
  • Humidity Sensor
Maximum Operating Temperature
104°F (40°C)
PHYSICAL CHARACTERISTICS
Height
27"
Width
17"
Depth
32"
Form Factor
Rack/Tower
Weight (Approximate)
28.30 lb
MISCELLANEOUS
Package Contents
  • APS 5kVA Scalable to 15kVA N+1
  • Rack mount kit and hardware
  • USB Cable
  • Safety Manual
  • Quick Installation Guide
Additional Information
  • Auto Shutdown Software: Trellis™ Power Insight
  • Extra Power for Future Expansion: 15kVA/13.5kW N+1
  • Relative humidity: % 0 - 95%, non-condensing
  • Altitude: m (ft) 3000 (10000) @ 25°C (77°F)
Certifications & Standards
  • UL 1778, 5th Ed.
  • CSA 22.2
  • FCC Part 15 Class B
  • FCC
  • UL
  • c-UL
  • NOM
  • ANSI C62.41 Category A, Level 3
  • ISTA 2A
Software Included
Power Insight 2.2
Energy Star
No
Environmentally Friendly
Yes
Environmental Certification
  • WEEE
  • REACH
  • RoHS
  • RoHS 2
Country of Origin
China
TAA Compliant
No
WARRANTY
Limited Warranty
5 Year
