General Information
Manufacturer: Tripp Lite
Manufacturer Part Number: SU20KRT-1TF
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Series: EZ
Product Model: SU20KRT-1TF

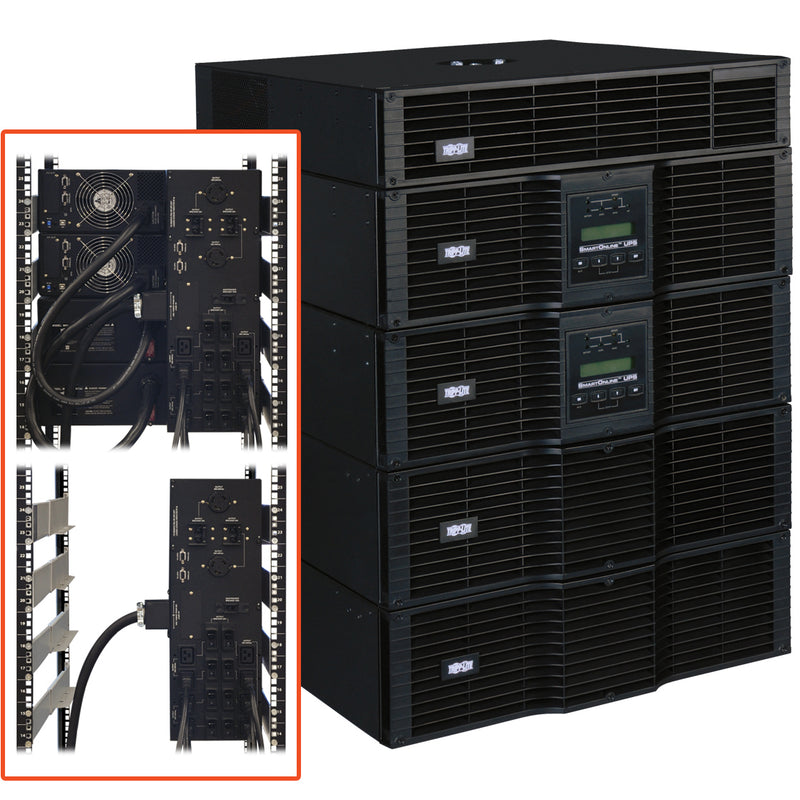

Product Name: SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
Marketing Information:
Tripp Lite SU20KRT-1TF 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
Product Type: Dual Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacles: 2 x NEMA L6-30R
Receptacles: 4 x NEMA 5-15R
Receptacles: 8 x IEC 60320 C19
Receptacles: 8 x NEMA 5-15/20R
Transfer Time: 0 ns
Overload Protection: Yes
Power Description
Load Capacity: 20 kVA/18 kW
Input Voltage: 240 V AC
Input Voltage: 208 V AC
Output Voltage: 120 V AC
Output Voltage: 208 V AC
Output Voltage: 240 V AC
Input Frequency: 50 Hz to 60 Hz
Output Frequency: 50 Hz to 60 Hz
Input Current: 108 A
Management
Network Management: SNMP Manageable
Bypass Switch: Manual
Bypass Switch: Automatic
Emergency Power OFF: Yes
Interfaces/Ports
Serial Port: Yes
USB: Yes
Modular Slots: Communications Slot
Battery Information
Backup/Run Time (Full Load): 4.30 Minute
Backup/Run Time (Half Load): 12.50 Minute
Typical Battery Recharge Time: 8 Hour
Physical Characteristics
Form Factor: Rack/Tower
Rack Height: 14U
Height: 5.1"
Width: 17.5"
Depth: 26"
Weight (Approximate): 44.10 lb
Miscellaneous

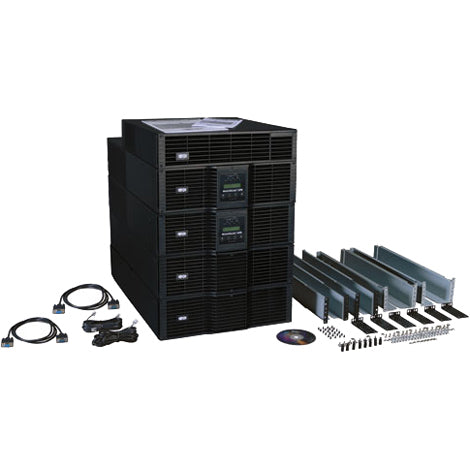

Package Contents:
- SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
- 2 x Power Modules
- 2 x Battery Packs
- 1 x Transformer
- L6-30R / C19 Parallel PDU with Bypass Switch
- 5 x Set of 4 post Rackmount Installation Rails
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
Additional Information:
Output Receptacles: 8 x C19
Software Included: PowerAlert Software
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 2 Year
14U Rack/Tower - 8 Hour Recharge - 4.30 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 4 x NEMA 5-15R, 8 x NEMA 5-15/20R, 8 x IEC 60320 C19
