General Information
Manufacturer: Tripp Lite
Manufacturer Part Number: RS-1215-RA
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Name: Power Strip 120V AC

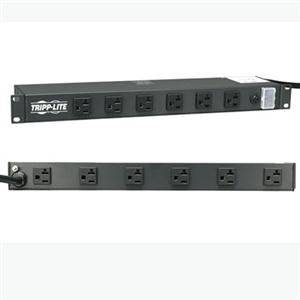

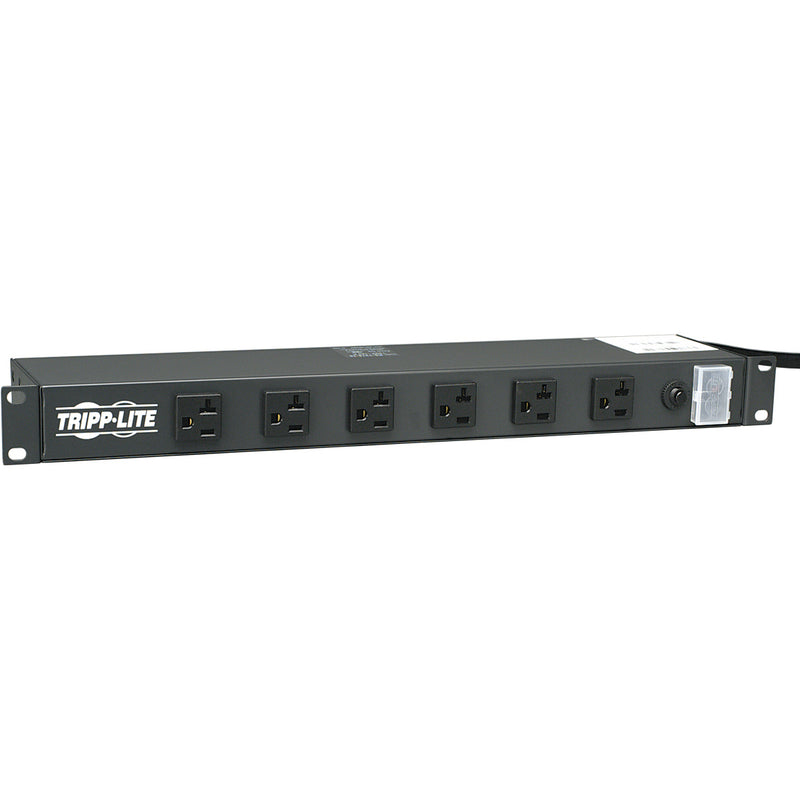

Marketing Information: Tripp Lite's RS-1215-RA Power Strip offers 15A capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19-in. rack meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-RA ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Features 12 NEMA5-15R outlets (6 front/6 rear) placed at a right angle (with ground pin at bottom), 15-ft. AC power cord and lighted power switch with cover that prevents risk of accidental turn-off.
PLUG/OUTLETS: Input: NEMA 5-15P

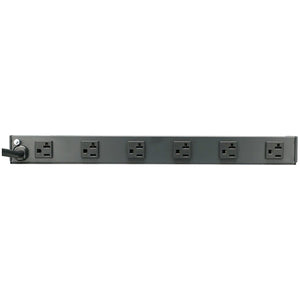

Output: 12 x NEMA 5-15R (6 front/6 rear)
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)
FORMAT: 19-in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more
Product Type: Power Strip
Technical Information
Plug/Connector Type: NEMA 5-15P
Receptacles: 12 x NEMA 5-15R
Cord Length: 15 ft
Circuit Breaker: Yes
Power Description
Input Voltage: 120 V AC
Maximum Output Voltage: 120 V AC
Maximum Input Current: 15 A
Maximum Frequency: 60 Hz
Power Switch: Yes
Physical Characteristics
Color: Black
Form Factor: Rack-mountable
Height: 1.8"
Width: 17.5"
Depth: 4.5"
Weight (Approximate): 4.60 lb
Miscellaneous
Package Contents:
- Power Strip 120V AC
- RS-1215-RA 1U Rackmount Power Strip
- Instruction manual with warranty information
Additional Information:
- Form factors supported: Rackmount, wall-mount and undercounter installation
- Switches: Red illuminated 2 positon switch controls power to all outlets
- Locking switch cover: Transparent locking switch cover prevents accidental shutoff
- TVSS grounding: Back panel nut and bolt grounding lug
Certifications & Standards:
Warranty
Limited Warranty: Lifetime
