Tripp Lite B072-032-IP2-K 32-Port IP KVM Switch 1 Local 2 Remote 16 USB Dongles

General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: B072-032-IP2-K
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Name: 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles
Marketing Information: Tripp Lite's B072-032-IP2-K KVM Switch is the optimal solution for controlling up to 32 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-032-IP2-K uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (16 included) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP2-K.
Product Type: KVM Switchbox

Technical Information

KVM Technology: Digital
Number of Computers Supported: 32
Number of Local Users Supported: 1
Number of Remote Users Supported: 2
Maximum Operating Distance: 100 ft

Video

Graphic Mode: Full HD
Maximum Video Resolution: 1920 x 1080

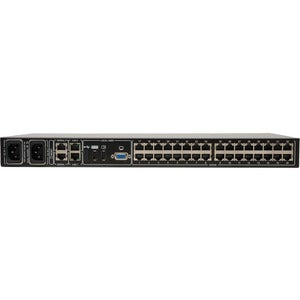

Interfaces/Ports

Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of Network (RJ-45) Ports: 36
Number of USB Ports: 2
Number of VGA Ports: 1

Physical Characteristics

Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7"
Width: 17.3"
Depth: 11"
Weight (Approximate): 7.75 lb

Miscellaneous

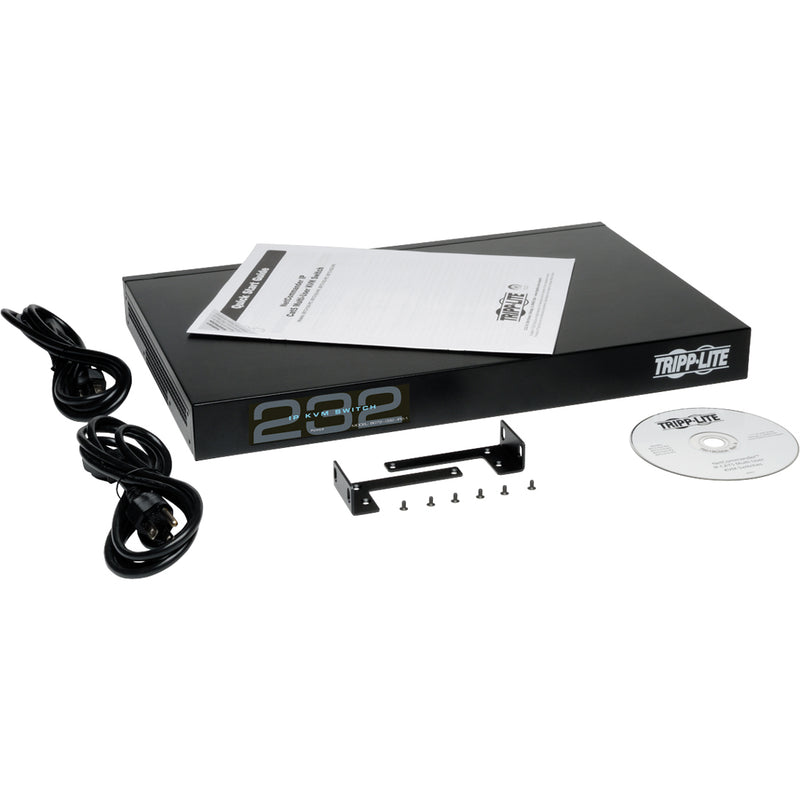

Package Contents:

• 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles
• 16 x USB Dongles ( B078-101-USB-1 )
• Rackmount Hardware
• 2 x Power Cords

Certifications & Standards:

• UL 60950-1 (USA)
• CSA (Canada)
• FCC Part 15 Class A
• CE IEC 60950-1

Platform Supported: PC
Platform Supported: Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS

Warranty

Limited Warranty: 3 Year
