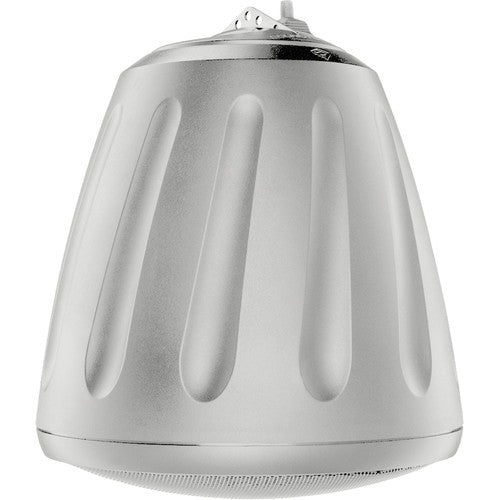

One 6.5 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Includes UL-listed hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity.
Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY), 2239 (hanging cable) and Mil-Spec 810 approved.
| Frequency Response (+/- 3 dB): |
85 Hz – 17 kHz |
| Frequency Response (+/- 10 dB): |
58 Hz – 22 kHz |
| Sensitivity: |
88.5 dB |
| Power Capacity RMS: |
90 W |
| Max SPL dB @ 1 M: |
108.0 dB |
| Nominal Impedance: |
8 ohms |
| Transformer Options: |
25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct |
| Tweeter: |
BroadBeam® |
| Woofer: |
6.5in Polypropylene |
| Connections: |
Four-pin Euroblock |
| Height: |
363.5 mm (14.31 in.) |
| Diameter: |
307.3 mm (12.10 in.) |
| Weight: |
6.1 kg (13.5 lbs.) |
| Shipping Weight: |
7.5 kg (16.5 lbs.) |
| Optional Accessories: |
Bracket for surface-mount applications (AC-RS-SM6), beam clamp (AC-BC-1), 10' split loom tubing (AC-SLT-10), 10' RSi hanging kit (AC-RS-HH-10), 20' hanging kit (AC-RS-HH-20), 50' hanging kit (AC-RS-HH-50), forged eye bolt (AC-FE1), snap link (AC-SL1) |
| Colors: |
Black / White / Custom |
