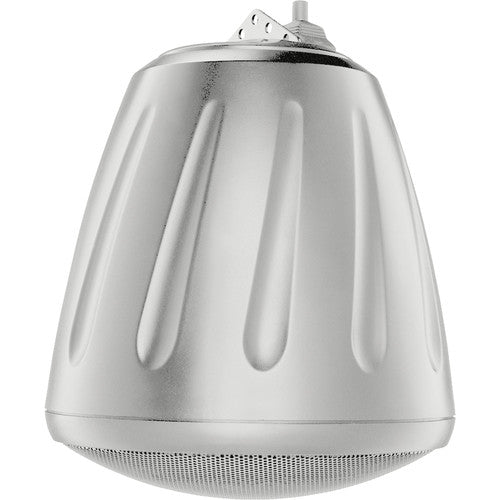

One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euro-block connector and terminal weather boot.
Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking. Plated steel grille with protective powder-coated finish for lasting durability. Average senitivity 86.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY), CE and Milspec 810 approved.
| Frequency Response (+/- 3 dB): |
87 Hz – 22 kHz |
| Frequency Response (+/- 10 dB): |
61 Hz – 22 kHz |
| Sensitivity: |
86.5 dB |
| Power Capacity RMS: |
75 W |
| Max SPL dB @ 1 M: |
105.5 dB |
| Nominal Impedance: |
8 ohms |
| Transformer Options: |
25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct |
| Tweeter: |
BroadBeam® |
| Woofer: |
5.25in Polypropylene |
| Connections: |
Four-pin Euroblock |
| Height: |
298.2 mm (9.68 in.) |
| Diameter: |
245.9 mm (9.68 in.) |
| Weight: |
4.3 kg (9.5 lbs) |
| Shipping Weight: |
10 kg (22.0 lbs) Two Per Box |
| Optional Accessories: |
bracket for surface-mount applications (AC-RS-SM5), beam clamp (AC-BC-1), 10' split loom tubing (AC-SLT-10), 10' RSi hanging kit (AC-RS-HH-10), 20' hanging kit (AC-RS-HH-20), 50' hanging kit (AC-RS-HH-50), forged eye bolt (AC-FE1), snap link (AC-SL1) |
| Colors: |
Black / White / Custom |
