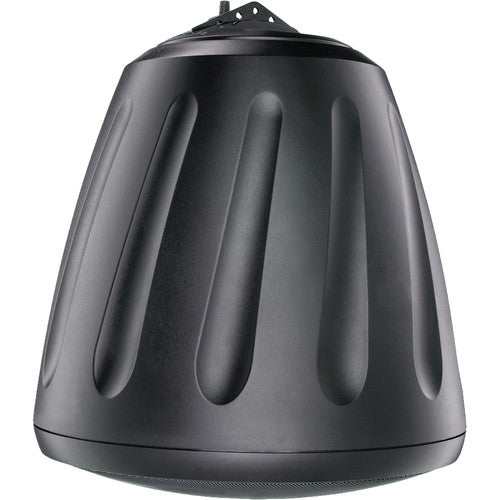

One 10 inch polypropylene cone with a butyl rubber surround attached to a reinforced baffle. Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response. High-output and maximum efficiency with an accentuated 70 Hz peak to maximize listener’s low-frequency experience.
150-watt, low insertion-loss transformer with an easy-access, five-position tap switch for 25-, 70.7-, 100-volt and transformer bypass positions. Includes UL listed hanging hardware with high-quality cables and integrated SpeedClamp™ self-locking wire clamp for fast, easy and secure installation. UL 1480 (UEAY) and CE-approved. Hanging hardware is UL 2239-approved.
Included accessories:
- Hanging hardware
- Euroblock connector
- Terminal weather boot
| Frequency Response (+/- 3 dB): |
53 Hz – 175 Hz |
| Frequency Response (+/- 10 dB): |
38 Hz – 450 Hz |
| Sensitivity: |
83.0 dB |
| Power Capacity RMS: |
150 W |
| Max SPL dB @ 1 M: |
105.0 dB |
| Nominal Impedance: |
4 ohms |
| Transformer Options: |
25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct |
| Woofer: |
10″ Polypropylene |
| Connections: |
Four-pin Euroblock |
| Height: |
437.6 mm (17.23 in.) |
| Diameter: |
376.4 mm (14.82 in.) |
| Weight: |
12.3 kg (27.0 lbs) |
| Shipping Weight: |
14.8 kg (32.5 lbs) |
| Optional Accessories: |
Bracket for surface-mount applications (AC-RS-SM8), beam clamp (AC-BC-1), 10′ split loom tubing (AC-SLT-10), 10′ RSi hanging kit (AC-RS-HH-10), 20′ hanging kit (AC-RS-HH-20), 50′ hanging kit (AC-RS-HH-50), forged eye bolt (AC-FE1), snap link (AC-SL1) |
| Colors: |
Black or White |
