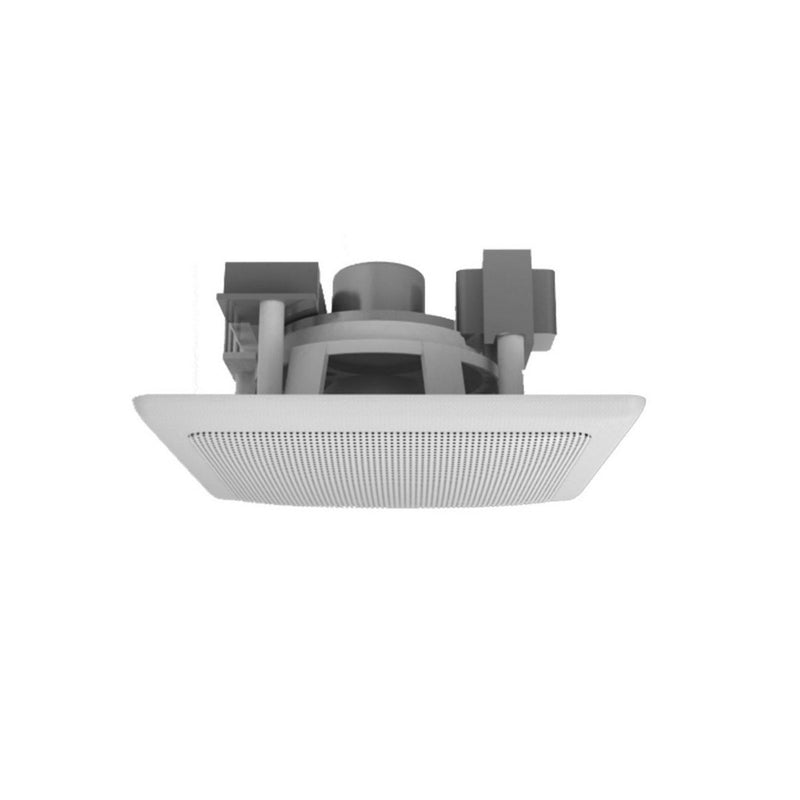

Integrated 10w transformer. One 3-inch full-range high-excursion, weather-resistant, high-fidelity polypropylene driver with butyl rubber surround and neodynium magnet. Ultra-compact design with a total visible footprint of 4.75-inch square. Weatherized components for indoor/outdoor applications. Corrosion-resistant, powder-coated aluminum grille with snap fit attachment. Rapid installation into dual-gang junction box using four stainlees steel screws (junction box not included). UL 1480 (UEAY) pending. Transformer does not include 8 ohm bypass.
Included accessories:
- Paintable white aluminum snap-on grille
- Paint mask
- Four stainless steel mounting screw.
| Frequency Response (-3 dB): |
170 Hz – 14 kHz |
| Frequency Response (-10 dB): |
82 Hz- 22 kHz |
| Sensitivity: |
85.0 dB |
| Power Capacity RMS: |
20 W |
| Max SPL dB @ 1 M: |
95 dB |
| Transformer Options: |
25 / 70.7 / 100 Volt option, no 8 Ohm bypass. |
| Full-Range Driver: |
76.1 mm (3.0 in.) Polypropylene driver w/ butyl rubber surround |
| Woofer: |
Optional subwoofer SM1001p |
| Connections: |
Five-position terminal block |
| Visible Height: |
120.7 mm (4.75 in.) |
| Visible Diameter: |
120.7 mm (4.75 in.) |
| Weight: |
0.58 kg (1.3 lbs) |
| Optional Accessory: |
Theft-resistant stainless steel grille (AC-RF31-TRG) and 10-inch powered subwoofer (SM1001p) |
| Colors: |
White or Black |
