Product Overview

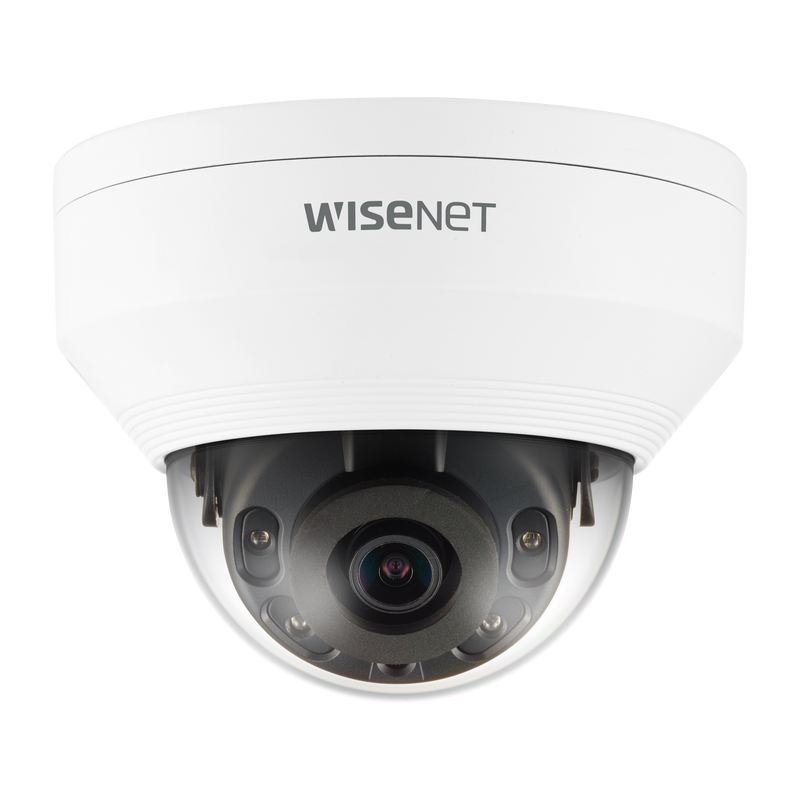

The QNV-8010R from Hanwha's Q Series affordable network camera line is a 5MP Outdoor Vandal Resistant Dome network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, IP66, IK10, PoE, 120dB True WDR, Intelligent Video Analytics, Hallway View, and SD card slot (SD/SDHC/SDXC up to 128GB).
Main Features
- Max. 5MP (2592x1944) resolution
- 2.8 mm Fixed lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps at 5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day and Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
General Information
Name: Hanwha QNV-8010R Q-Series 5MP IR Vandal IP Dome Camera, 2.8mm Fixed Lens, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089164360
Country of Origin: Vietnam. Country of origin is subject to change
-
Video Imaging Device 1/2.8" 5MP CMOS Effective Pixels 2592(H)x1944(V) Min. Illumination Color: 0.15Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Lens Focal Length (Zoom Ratio) 2.8mm fixed focal Max. Aperture Ratio F2.0 Angular Field of View H: 104.7°/ V: 76.5°/ D: 136.0° Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~67˚ / 0˚~355˚ Operational IR Viewable Length 20m(65.62ft) Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90˚/270˚) Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm outputNetwork Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Resolution 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)Smart Codec WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming (Up to 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformWeb Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Memory 512MB RAM, 256MB Flash Environmental Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°CStorage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Certification IP66, IK10 Electrical Input Voltage PoE(IEEE802.3af, Class3) Power Consumption PoE: Max 7.5W, typical 5.8W Mechanical Color / Material White / Aluminum RAL Code RAL9003 Product dimensions / weight Ø120.3x91.7mm(Ø4.74x3.61"), 510g - • The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin.
