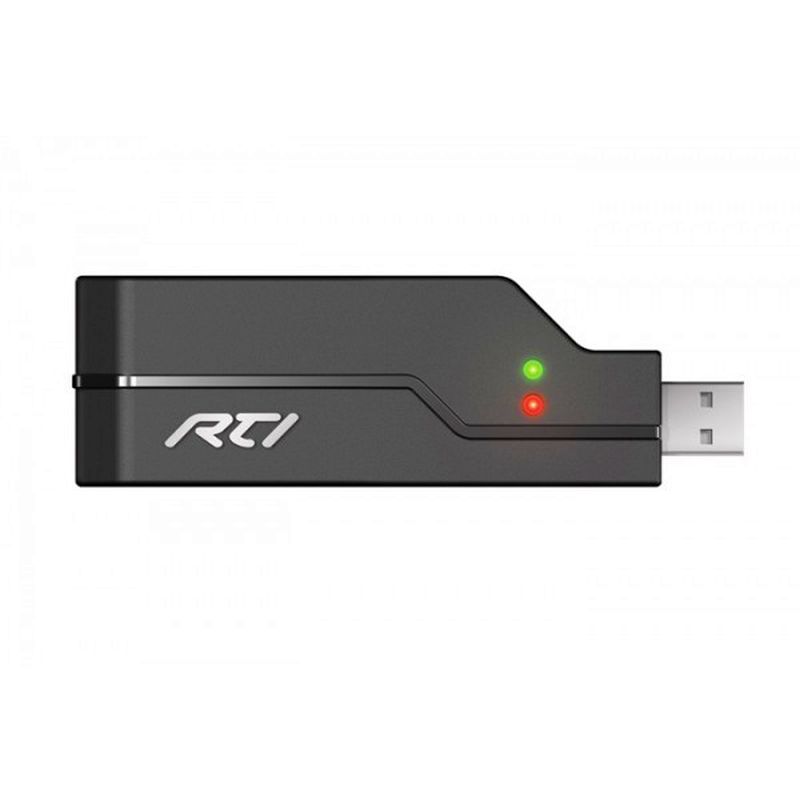

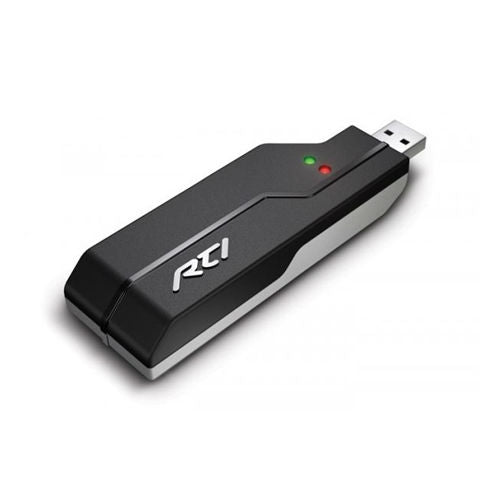

RTI ZBPRO
PROFESSIONAL 2.4GHZ NETWORK MANAGEMENT TOOL
The ZB-Pro is a Professional Network management Tool for use with RTI 2.4GHz wireless ZigBee® networks. Attached to a standard USB port of a PC, the ZB-Pro communicates with ZM-24 Transceiver Modules via 2.4GHz RF. It can be used for several purposes which are enabled automatically by the specific Integration Designer® software function that is being used.
Description
The ZB-Pro incorporates many features that enable it to assist with the
setup of the RTI 2.4GHz ZigBee® network.
Key Features
- Updates the firmware in the RTI ZM-24 Transceiver Module.
- Downloads network configuration data into a ZM-24.
- Designed to aid ZigBee® wireless network troubleshooting.
- No external power supply is required. Power is derived directly
from the USB port.
- Utilizes IEEE 802.15.4 wireless Zigbee® communication at 2.4Ghz.
- Feedback LEDs confirm various operations.
- Compact, rugged design.
- Available only to professional systems integrators.
- Two year parts and labor warranty.
Specifications
| Power Requirements |
Powered directly from USB port |
RF Frequency
Range |
2.4 GHz |
| Wireless Networking |
IEEE 802.15.4 (ZigBee® Wireless Mesh
Networking) |
| Operating Temperature |
+32°F to +122°F
(0°C to +50°C) |
| Operating Humidity |
5% to 95% non-condensing |
Module Dimensions -
Antenna Extended |
4.3" x 1.4" x .7 "
(109mm x 35mm x 16mm) |
| Weight |
1.1 oz. (32 grams) |
