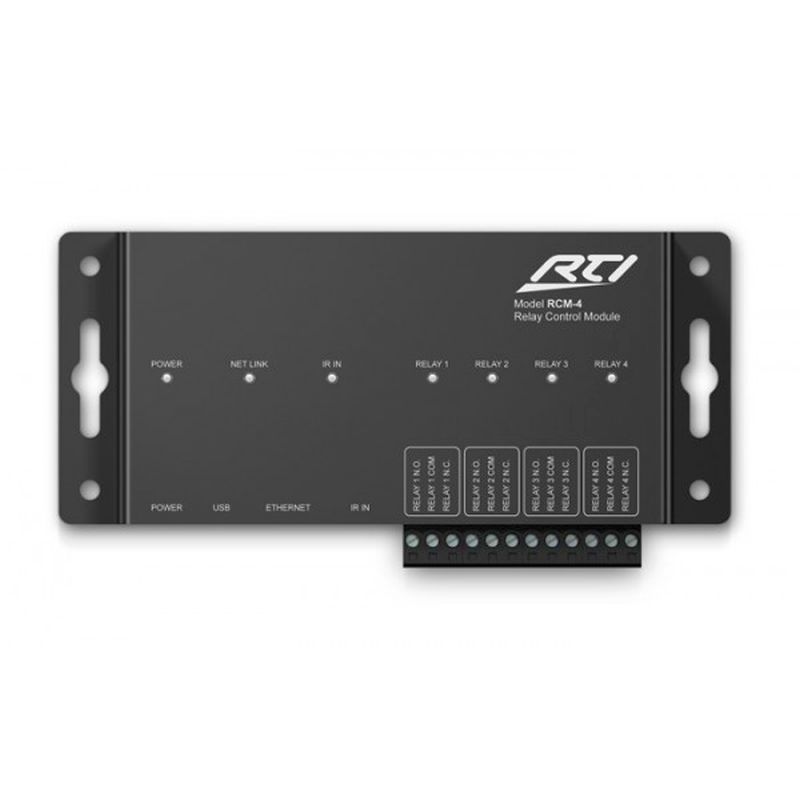

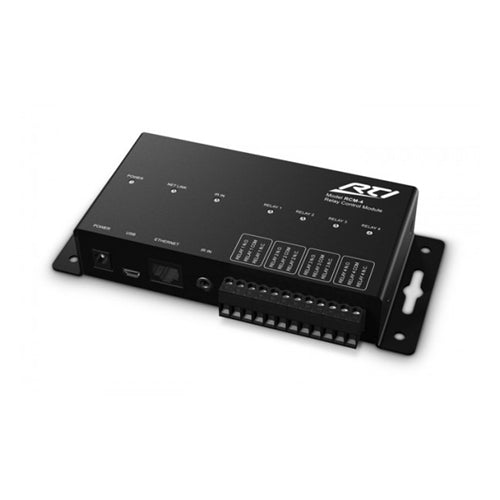

RCM-4 RELAY CONTROL MODULE
The RCM-4 is equipped with four individually addressable relays. Built-in Ethernet enables the convenience of control from an RTI XP series control processor via the LAN. An IR input allows the RCM-4 to be triggered from many different sources, including RTI in-wall controllers, control processors or third-party infrared repeater systems. Commands trigger open and close functions as well as adjustable hold times for momentary relay operation. The RCM-4 can be powered from the included power supply or PoE.
- Four individually addressable relays.
- Relays capable of switching up to 28VDC@5A.
- Relays can be used in a normally open or normally closed configuration.
- Relays can be controlled with both IR and Ethernet.
- Powered using power supply or PoE (Power over Ethernet).
- Discrete set of IR codes and an IR input allows relays to be triggered from virtually any IR programmable system.
- Relays create a “dry contact”.
- Programmable momentary relay hold times.
- Sturdy steel construction.
- 12VDC power supply included.
| Power |
+12VDC, 1.25A |
| Relays |
Four, 28 VDC@5A |
| Ethernet Port |
One, RJ-45, 10/100 Base-T with Power-over-Ethernet |
| Infrared Input |
Compatible with industry-standard repeaters and receivers |
| USB Port |
One, Programming |
| Enclosure |
Formed steel, black powder coating |
| Mounting |
Wall-mount or free standing |
| Dimensions (W x H x D) |
6.8” (173mm) x 2.9” (74mm) x 1.2” (31mm) |
| Operating Temperature |
+32°F to +122°F (0°C to +50°C) |
| Operating Humidity |
5% to 95% non-condensing |
| Weight |
1 lb. (466g) |
| Warranty |
Three Years (Parts & Labor) |
