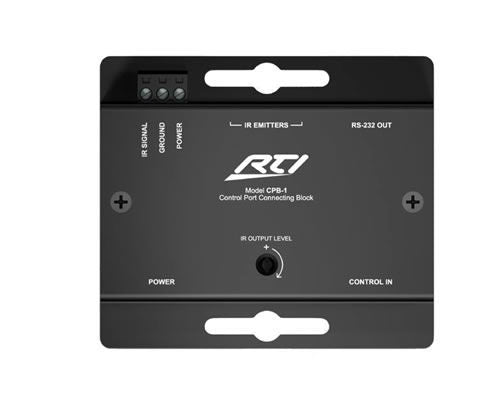

CPB-1 CONTROL PORT CONNECTING BLOCK

The CPB-1 Control Port Connecting Block provides a cost effective solution for one-room installations such as classrooms, that require an in-wall controller and both infrared and RS-232 control of local devices. The CPB-1 provides power to one RTI in-wall system controller and has two output ports that allow the connection of up to two single or dual infrared emitters. It also incorporates an RS-232 port for control of devices without the need of an RTI processor.

• Provides power for one in-wall controller
• Two infrared emitter outputs
• Variable IR output power
• Allows RTI in-wall controllers to communicate via one-way RS232 to devices without a processor
• Steel construction
• 12VDC power supply included
