$1,899.99

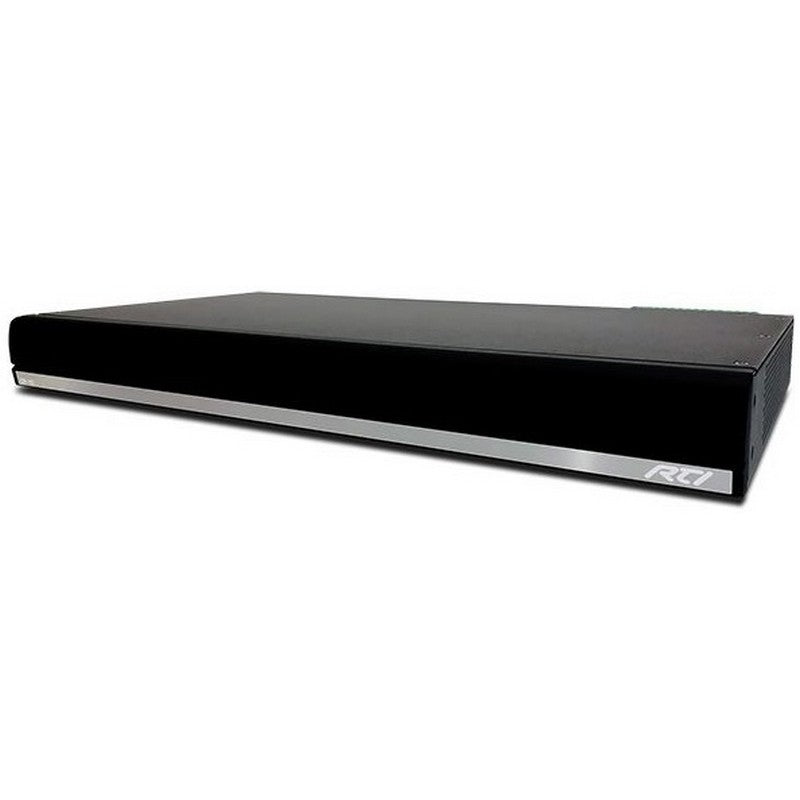

CP-16i 16 Channel Cool Power Amplifier



The CP-16i Audio Amplifier is ideal for discerning listeners who demand the highest quality audio in every room. Capable of delivering 100W of true audiophile-grade sound to 16 channels, the Cool Power amplifier easily expands the reach of any audio distribution system. Engineered to perform as well as it sounds, the CP-16i features highly efficient, Class-D amplification, overload detection and a compact chassis that fits nicely into one rack space.



Brochure (PDF)

RTI Product Brochure - Residential (PDF, 8.3M)

RTI Product Brochure - Commercial (PDF, 6.43M)



Perfect for residential and commercial settings, the experience is the same in every room - amazing. Put RTI technology to the test - you’ll never miss a beat.



  • Sixteen channel amplifier utilizes Cool Power® technology.
  • Power output is 100W per channel at 4 ohms.
  • Bridgeable audio outputs for increasing power to 200W per channel.
  • Easily expands the RTI AD-4x, AD-8x and AD-16x audio distribution systems.
  • Compatible with virtually any audio distribution system.
  • Power control via voltage triggers or audio signal sense.
  • Signal Sense feature automatically powers the CP-16i on when an audio signal is detected or puts the unit is standby mode when no signal is present.
  • Voltage trigger pass-through for powering on/off additional amplifiers.
  • Thermal overload and OC (Overcurrent) monitor indicators protect the amplifier.
  • Rackmounting requires just 1RU or use included feet for free standing installation.
  • Class-D amplifier technology ensures efficient heat dissipation and low power consumption.



AC Input Voltage 115VAC or 240VAC (Switchable), 230W
Main Power Switch Front Panel On/Off with LED
Mounting Rack mount (1RU) or free standing
Dimensions (HxWxD) 1.7in(44mm) x 17.25in(438mm) x 8.98in(228mm)
Weight 9.0lbs (4.08kg)
Signal Sense Audio input sense, 12V trigger and 3-5V trigger
Standby Power Consumption Less than 0.25W
Warranty Three Years (parts & labor)

Audio
Number of Channels 16 channels in 8 stereo zones: each zone can be bridged
Output Power 100W per ch. in SE, 4Ω (1.0%THD+N, 20 Hz - 20kHz)
200W per ch. in BTL, 8Ω (1.0%THD+N, 20Hz - 20kHz)
Amplifier Gain: (20Hz - 20kHz) 25.8dB ±0.5dB
Amplifier Input: Single Ended input - 1 Vrms max Input Voltage without clipping
Amplifier Output: Single Ended output stage - GND referenced
28Vp max Output Voltage without clipping
THD + N 1.0%, 4Ω, SE, f=100Hz, Po=1W
Dynamic Range 110dBA SE, 115dBA BTL
Idle Niose 0uV, A-weighted, 20Hz-20kHz
Upper Bandwidth, -3dB 100 kHz, 4Ω, SE
120 kHz, 8Ω, SE
Frequency Response ±0.4dB, 10Hz - 20kHz, all loads
Input Impedance 47K Ω
Output Serial Impedance 30m Ω, f≤1kHz

AC Mains Power
AC Mains Power Universal Mains 100 - 240 VAC, 50 - 60Hz
Fuse Rating T6.3A_H 250V
Power Connection IEC 320 C13 power connector with 3-pole detachable power cord

Thermal
Environmental Operating Temperature +32°F to +113°F (0°C to +45°C)
Thermal dissipation 2 low noise fans mounted in side panels
Thermal dissipation heat loss  0.23 W / 0.8 BTU/hr, standby
40 W / 135.5 BTU/hr, idle, all ch.
100 W / 341 BTU/hr, max output power, all, ch. driven

NOTE: Note that the CP-16i requires an external preamp for volume control.
