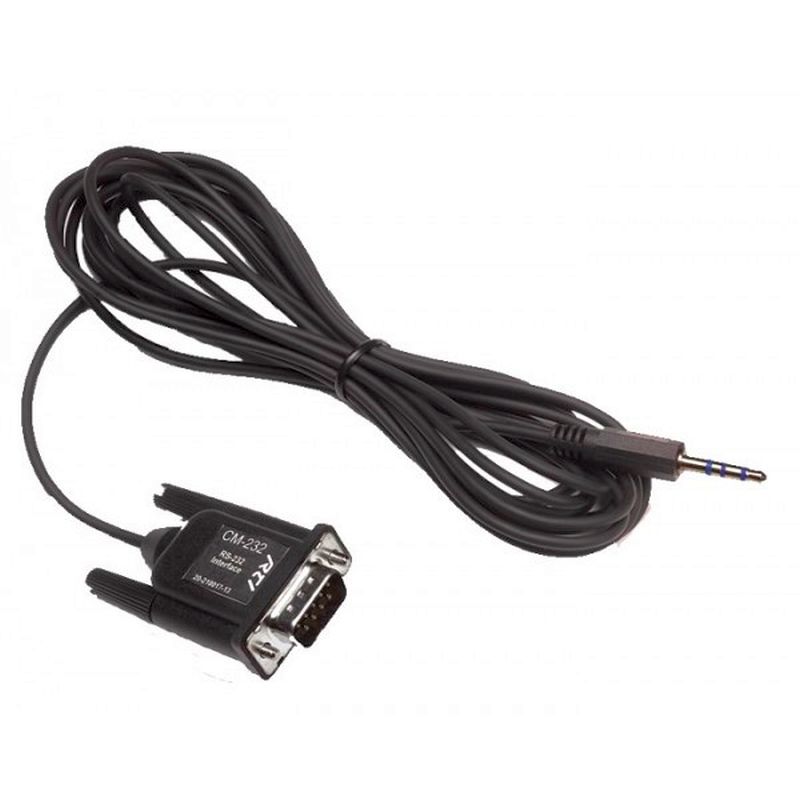

RTI Serial Communication Module, Model CM232
The CM-232 communication module provides an RS-232 interface to almost any RS-232 enabled device. It attaches to an RTI control system such as the TheaterTouch™ RP-6 Remote Control Processor on one end, and a device's DB-9 serial port connector on the other end. The CM-232 is capable of one-way transmission (no receive function is supported) of user-defined character or binary strings. These character strings, as well as the baud rate, parity, and bit structure are programmed using RTI's TheaterTouch Designer software package.
- Connects to the output ports of the control processor or expansion module (such as XP3/XP6/XP8s/PCM-4)
- Allows the control processor to send commands to almost any RS-232 enabled device
- Software selectable baud rate up to 115.2K (depending on control processor)
- Industry standard DB-9 male connector
- No power supply required - Power is supplied by the output ports
- User-definable output strings using Integration Designer® software
Specifications
Baud Rate......................................................................... Software Selectable
.............................................................(Depends on attached control system)
Cable Length........................................................................... 12 Feet (3.7 m)
Connector........................................................................................ DB-9 Male
Pins Used.............................................................. GND, TXD, DTR (tied high)
Dimensions (W x H x D)...................... 1.3” (33mm) x .5” (14mm) x 2” (51mm)
Warranty................................................................... One Year (Parts & Labor)
