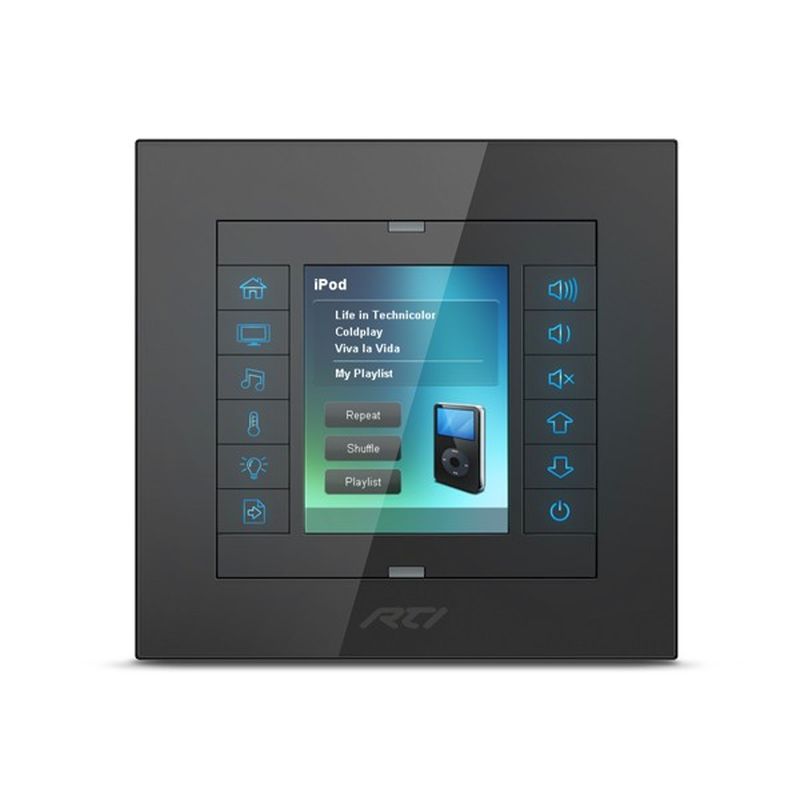

RTI KX2 2.4" Color In-wall Universal System Controller (Black faceplate with black bezel)

RTI KX2 2.4" Color In-wall Universal System Controller (Black faceplate with black bezel)

$399.99

KX2 2.8 INCH IN-WALL TOUCHPANEL KEYPAD

The KX2 in-wall controller has a clean, sleek design with twelve programmable hard buttons and a 2.8" color touchscreen. The hard buttons and graphic interface are fully programmable using RTI's Integration Designer® software for full control of electronics throughout the building. A built-in infrared output port allows direct control or get two-way control when used with an RTI XP series control processor. In addition, the unit's integrated 10/100Base-T Ethernet port with Power-over-Ethernet (POE) provides the flexibility to accommodate any installation.

*Feedback requires a compatible two-way RTI control processor.
*Integration Designer software only available to authorized RTI dealers.



  • Fully programmable 2.8" touchscreen display and twelve hard buttons.
  • QVGA resolution (240w x 320h) TFT LCD to display custom buttons, text and graphics.
  • Integrated 10/100Base-T Ethernet port with Power-over-Ethernet.
  • IR output drives up to 1000 feet of wire.
  • Proximity sensor automatically wakes the unit up when approached by the user and an ambient light sensor adjusts the brightness.
  • Integrated mounting wings for easy installation in retrofit installs.
  • Fits in a 4"x4" square electrical junction box (See installation guide for important information).**
  • Ships with stylish, low-profile white bezel - bezels also available in black and light almond.
  • Faceplate and buttons are black with a glossy finish.
  • Twelve hard buttons may be interchanged and custom laser engraved using Laser Shark.
  • Optional modules/processors for voltage sensing, relays and advanced two-way control.
  • USB and Ethernet programming.



Power +9VDC to +16VDC, 1A max
Power Management Adjustable backlight brightness, Ambient light sensor, Proximity sensor
Touchscreen Display High-brightness color TFT LCD
QVGA (240w x 320h pixels) with 65K colors
Integrated high-resolution resistive touchscreen
Display Size 2.8" (71mm) diagonal
Display Backlight LED Backlit, 200nit
Infrared Output Through control port, 200mA output
Drives up to 1000 ft (300 m) of wire
Ethernet Port 10/100 Base-T with Power-over-Ethernet
Audio Beeper
Total System Memory 32MBytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB programming port
Enclosure High-impact molded ABS plastic
Mounting Integrated mounting wings, or screws through front bezel
Front Plate Dimensions (H x W) 4.4 in (112mm) x 4.6 in (117mm)
Installation Cut-Out (H x W) 3.789� in (96.5mm) x 3.789� in (96.5mm)
Total Depth in Wall 1.2 in (31mm) Plus cables
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 7.5 oz (212g)
Warranty Three Years (Parts & Labor)

* All Specifications subject to change without notice.
** The KX2 uses a standard 4�x 4� electrical junction box. These should be available at most hardware stores or electrical supply stores online (ex. Granger.com).
