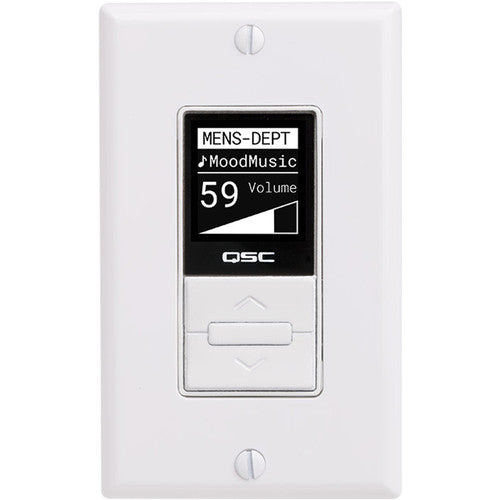

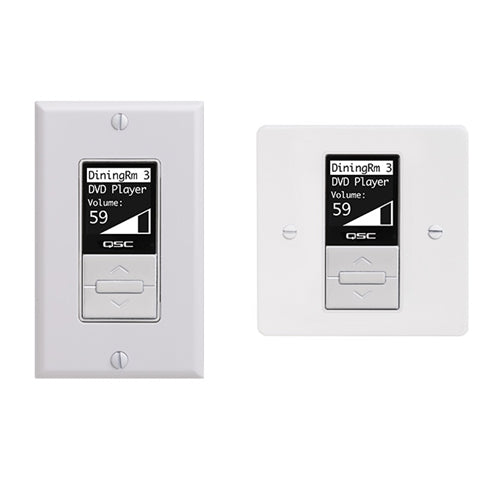

MP-MFC Controller

The MP-MFC series is an elegant set of wall mount controllers designed to provide the end user with intuitive system control of the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide as much or as little control over the system as needed. Installers can easily configured the MP-MFC for use with the MP-M Series mixer (using the free MP Install app for Android/iOS tablets as well as Mac and PC desktops) to control source selection and volume for a zone as well as recalling scenes.

The MP-MFC controller features three large buttons (increment, decrement, select) as well as a crisp 27 mm x 26 mm graphic display which clearly labels selectable functions and options. The MP-M Series mixer has two ports for MP-MFC connectivity, each of which can accommodate four daisy-chained MP-MFC controllers with a maximum total cable length of 250 meters per port.

Up to eight MP-MFC controllers may be connected to a single MP-M Series mixer using standard CAT5 (RJ45) cabling.

Features

• Configure as much or as little control as needed
• Control source select, scene recall, volume control
• Three buttons (increment, decrement, select)
• Crisp 27 mm x 26 mm monochrome graphic display
• Daisy chain up to four MP-MFC controllers per line
