| KLA Series |
|
|
| SPECIFICATIONS |
KLA12 |
KLA181 |
| Configuration |
Multipurpose 2-way |
18" subwoofer |
Transducers
High Frequency
Low Frequency |
1.75” diaphragm compression driver
12” cone transducer |
18" cone transducer |
| Frequency Response (-6 dB) |
49 Hz to 18 kHz |
38 Hz |
| Frequency Range (-10 dB) |
44 Hz to 20 kHz |
33 Hz |
| Nominal Coverage |
90° H x 18° V |
- |
| Maximum SPL (1 meter) |
131 dB peak |
135 dB peak |
| Amplifiers |
| Power Output |
HF: 500 W Class D continuous
LF: 500 W Class D continuous |
1000 W Class D continuous |
| Input Impedance |
XLR: 40 kΩ balanced / 20 kΩ unbalanced |
XLR: 40 kΩ balanced / 20 kΩ unbalanced |

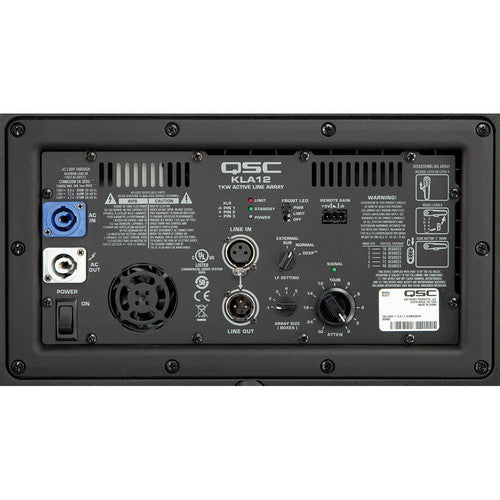

| Controls |
Power, Attenuation, LF Setting (External Sub/Normal/DEEP™), Array Size (1-5), Front LED (Pwr/Limit/Off) |
Power, Attenuation, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off) |
| Indicators |
Power, Signal, Standby, Limit |
| Connectors |
Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out |
| Cooling |
On demand, 50 mm variable speed fan |
| Amplifier Protection |
Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ |
| Transducer Protection |
Thermal limiting, excursion limiting |
| AC Power Input |
Universal power supply 100–240 VAC, 50 to 60 Hz |
AC Power Consumption
(1/8 Power) |
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A |
| Enclosure |
| Material |
Impact resistant ABS |
Painted birch plywood |
| Finish |
Black or white paint |
Black or white textured paint |
| Grille |
Rugged powder coated steel grille |
Black or white powder coated 16 gauge steel |
| Dimensions (HWD) |
15.0" × 23.4" × 16.6"
(382 mm × 594 mm × 422 mm) |
21.6" × 23.1" × 25.7"
(547 mm × 586 mm × 633 mm) |
| Weight (Net) |
55 lb (25 kg) |
100 lb (45.3 kg) |
| Available Accessories |
KLA12 tote, K Series M10 Kit, KLA AF12 Array Frame |
KW181 pole |
