$645.00

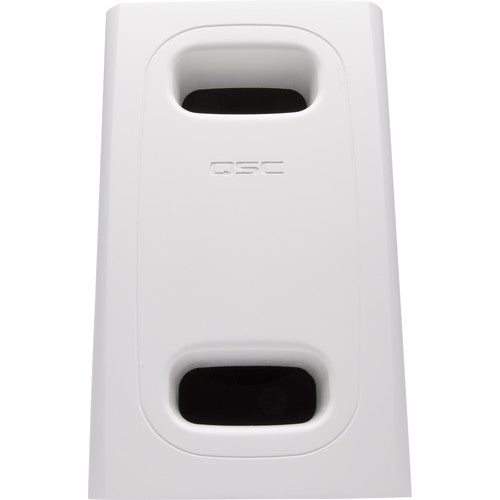

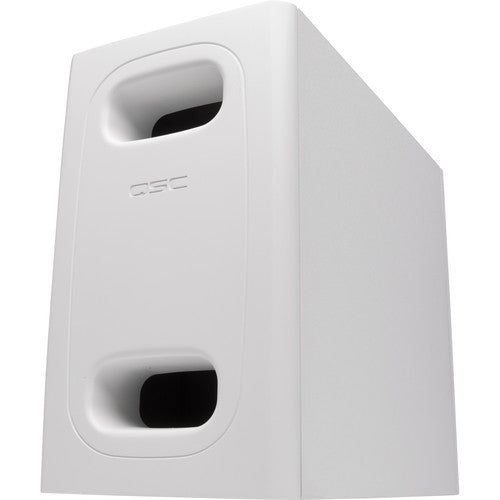

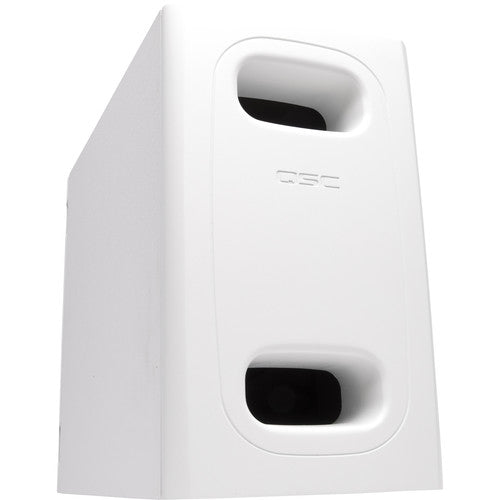

AD-S.SUB

6.5-inch Dual Voice Coil, Small Format Surface Subwoofer

The QSC AD-S.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

Features

  • Dual voice-coil for improved thermal dissipation and higher output
  • Low saturation and low-loss 70/100 V transformers in mono mode
  • Low-Z mono or stereo configurable
  • 4x built-in high-pass filtered outputs
  • Locking 4-pole Euroblock connectors
  • Reversible rear panel cover with cable tie anchors
  • Reversible V-wall mount hardware
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
  • Available in black (RAL 9011) or white (RAL 9010)



Specifications AD-S.SUB
LF transducer 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer
HF transducer N/A
Effective frequency range 45 Hz – 150 Hz
Rated noise power / voltage 100 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)		 86
Coverage (‐6 dB) [°] Omni
Directivity factor TBD
Directivity index [dB] TBD
Maximum SPL [dB]
(continuous / peak)		 100 / 106
Recommended amplifier 100 W
Transformer taps / impedance 70 V: 100, 50, 25, 12.5 W (mono only)
100 V: 100, 50, 25 W (mono only)
Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo

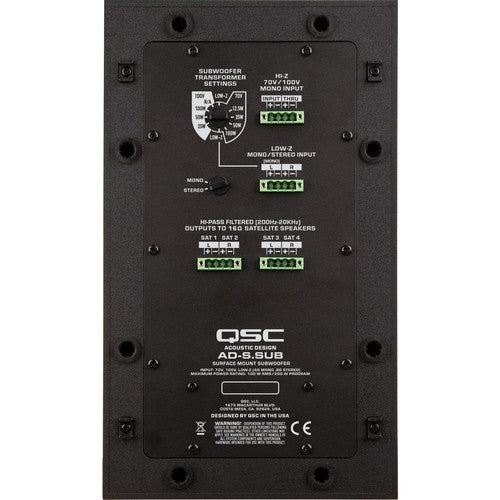

Connectors Hi-Z mono input: 4-pole Euroblock with thru output
Low-Z input: 4-pole Euroblock, left (mono) and right
Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites
Enclosure material Vinyl wrapped medium density fiberboard
Port baffle / cover panel ABS
Ingress protection N/A
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 23.6 lb (10.7 kg)
Product dimensions (Ø x H) 13.8 x 8.2 x 17-inch (350 x 209 x 432 mm)
Shipping weight TBD
Shipping dimensions (H x W x D TBD
Included accessories V-wall bracket, 4x euroblock connector, rear cover panel, adhesive rubber feet
Safety agency Transformer UL registered per UL1876, ROHS, CE compliant
