AD-P4T
4.5", 2-way, 150° conical DMT

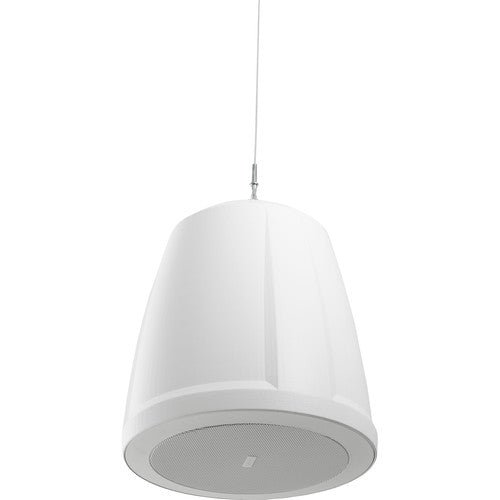

The QSC AcousticDesign™ AD-P4T is a 4.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.
Features
- Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 2x quick-link suspension cables and slip-lock fasteners provided
- Intrinsic Correction™ voicings available via Q-SYS Q-SYS Platform and CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16Ω bypass
- Blemish-free removable logo
- Sealable input cover to prevent moisture from entering the input terminal block
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
|
System Details |
AD-P4T |
|
Effective frequency range 2 |
65 Hz – 20 kHz |
|
Rated noise power / voltage 1 |
30 watts / 22 volts (rms) |
|
Sensitivity [dB] 3 |
87.9 |
|
Rated coverage (-6 dB) 4 |
150° conical DMT™ |
|
Directivity factor 4 |
4.5 |
|
Directivity index [dB] 4 |
6.5 |
|
Maximum continuous SPL [dB] 5 |
102 |
|
Maximum peak SPL [dB] 5 |
108 |
|
Nominal impedance [ohms] |
16 |
|
Recommended amplifier |
60 watts |
|
Transformer taps / impedance |
16Ω (in bypass setting) |
|
LF transducer |
114 mm [4.5 in] weather treated paper cone woofer |
|
HF transducer |
19 mm [0.75" in] aluminum dome tweeter |
|
Input connector type |
Euroblock connector with parallel output |
|
Enclosure material |
Impact Resistant ABS |
|
Grille material |
Powder coated steel |
|
Ingress protection |
IP-34 |
|
Operating environment |
Designed for indoor use |
|
Operating temperature range |
-20 to 50° C [-4 to 122° F] |
|
Net weight |
2.9 kg [6.5 lb] |
|
Product dimensions (Diameter x Height) |
Ø 237 x 272 mm [Ø 9.3 x 10.7 in.] |
|
Shipping weight |
3.9 kg [8.7 lb] |
|
Shipping dimensions (H x W x D) |
298 x 362 x 286 mm [11.75 x 14.25 x 11.25 in] |
|
Included mounting hardware |
Two quick-link cable assemblies (length 3.25m/ 128 in 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille. |
|
Safety Agency |
UL1480, Transformer UL registered per UL1876, ROHS, C-Tick (pending), CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems. |
