QSC AD-C1200 Ceiling Mount Loudspeaker
The QSC AD-C1200 Ceiling Mount Loudspeaker is designed for music playback, public address and distributed audio in situations that require high output from a ceiling mounted loudspeaker. The AD-C1200 is rated for 300 watts continuous power handling and can take up to 600-watt peaks.

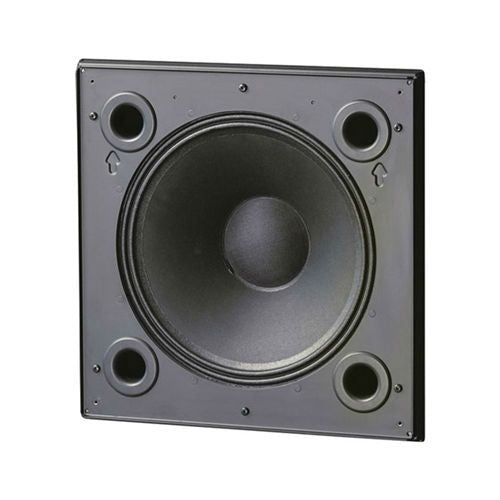

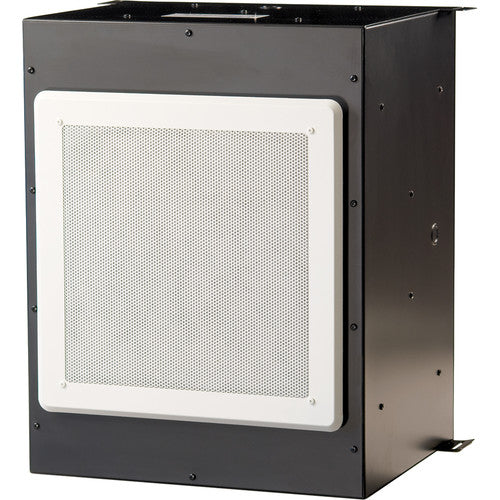

The AD-C1200 includes coaxial transducers, a transformer and a crossover network factory-mounted on a steel baffle. The baffle is designed to mount to the QSC enclosure AD-C1200BB (available separately) or to any ~2.5' enclosure using industry standard transducer mounting dimensions. High-current, low tolerance network components provide smooth full-range, passive performance. The included 70V/100V custom designed transformer is optimized for low line loss as well as accurate and transparent acoustic performance.
- 12" low-frequency woofer
- 1.75" diaphragm compression driver
- 300 watt continuous power rating
- 70V/100V multi-tap transformer included (system can operate in distributed or low-impedance mode)
Product Highlights
- 12" Low-Frequency Woofer
- 1.75" Diaphragm Compression Driver
- 300 Watt Continuous Power Rating
- 100 Watts Continuous Power Handling
- 70/100V Multitap Transformer
Specifications
| Configuration |
Passive |
| Woofer |
12" (304 mm) ferrite woofer |
| Tweeter |
1.75" (44 mm) neodymium compression driver |
| Frequency Range |
42 Hz - 18 kHz
37 Hz - 18 kHz useable frequency range |
| Maximum Output |
Calculated Peak Output: 124 dB SPL
Calculated Continuous Output: 118 dB SPL |
| Nominal Coverage Angle |
85° horizontal and vertical |
| Nominal Impedance |
16 ohms |
| Power Rating |
300 W
Max Amp Power 600 W |
| SPL |
93 dB SPL, 1W/1m |
| Transformer Taps |
100 V: 16 ohms bypass, 150 W, 75 W, 37.5 W 70 V: 16 ohms bypass, 150 W, 75 W, 37.5 W, 18.2 W |
| Rating |
CE, UL 1480 (commercial/professional use)
UL 2043 (air handling spaces) |
| Connectors |
Euro-style connectors |
| Dimensions |
Not specified by manufacturer |
| Weight |
25 lb / 11.3 kg |
