PANAMAX MD2-AV SURGE PROTECTOR 2 OUTLET 3 IN 3 OUT RCA EMI RFI FILTRATION

PANAMAX MD2-AV SURGE PROTECTOR 2 OUTLET 3 IN 3 OUT RCA EMI RFI FILTRATION

$107.99 $108.81
Brand: PanamaxReviews
You save $0.82 (0%)
Special order products normally take 10–14 business days to ship, depending on vendor availability.
  • Free US shipping on orders over $200. Add $92.01 more to qualify.
  • Special order: no returns without a manufacturer RMA. Wrong or defective items are always covered.
    Return terms: you pay shipping both ways, 3% card fee, 30% if opened
    • 30 daysfrom delivery to start a return
    • Shipping both waysto you and back to us, paid by you
    • 3% card feededucted from every refund
    • 30% open-box feeif the box has been opened
    • Special ordersno returns without a manufacturer RMA
    • Discontinued itemsnot returnable

    Wrong or defective items, and items damaged in transit with Package Protection, are always covered with no fees. Full return policy

  • Manufacturer's warranty from Panamax. Warranty
  • Volume order? Get a quote: chat with us, email us, or add it to your cart and download a PDF quote.
D Questions about this product? Daniel and the team reply fast, usually within minutes. Chat with us now or email us.
Securing a home or business? Plan cameras and door access on a map of your own property with the free Silarius Site Planner. Try it free
More information View images
Reviews

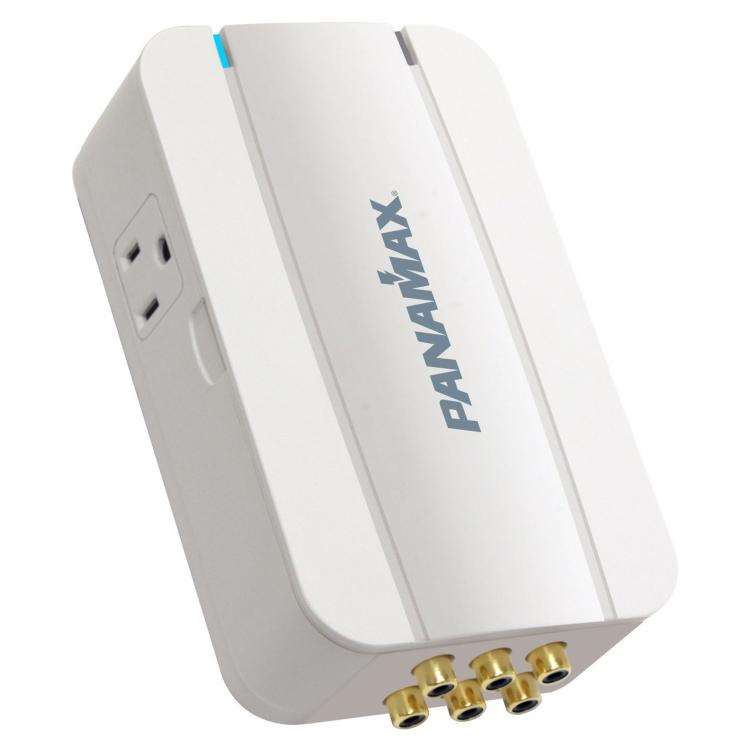

Panamax MD2-AV

AC and RCA Signal Line Surge Protection.

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Noise Filtration Circuit

EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.

RCA Line Level Protection

Protects equipment from electrical surges that travel over low voltage RCA lines.

  • Panamax MD2-AV Features at a Glance
  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
  • Protect-or-Disconnect™ Circuitry
  • 3 Circuits RCA Input/Outputs.
  • Removable, paintable cover ensures seamless fit with any décor.
  • Includes module to deliver signal from source component to MD2-AV to remote AV equipment.
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
  • Thin Profile – Only 1.5″ inches deep.
  • Convenient display feature; turn cover around to hide diagnostic lights.



Panamax MD2-AV Specifications

General
  • FamilyDirect Plug Ins
  • Line Voltage120 (Volts)
  • Number of Outlets2
  • Outlet DescriptionsBoth outlets filtered and surge protected
  • ComplianceC-UL (UL standard #1449)
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordN/A
  • Dimensions3.25″ W X 1.625″ D X 5.25″ H
  • Weight0.65 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating50 dB @ 100 kHz – 1 MHz
  • Signal Line Protection3 RCA
Shipping Info
  • Length 4.9 (Inches)
  • Width 3 (Inches)
  • Height 6.2 (Inches)
  • Weight 1 (Lbs)
  • Master Pack Qty24



Weight 1.00 lbs
