Product Overview:

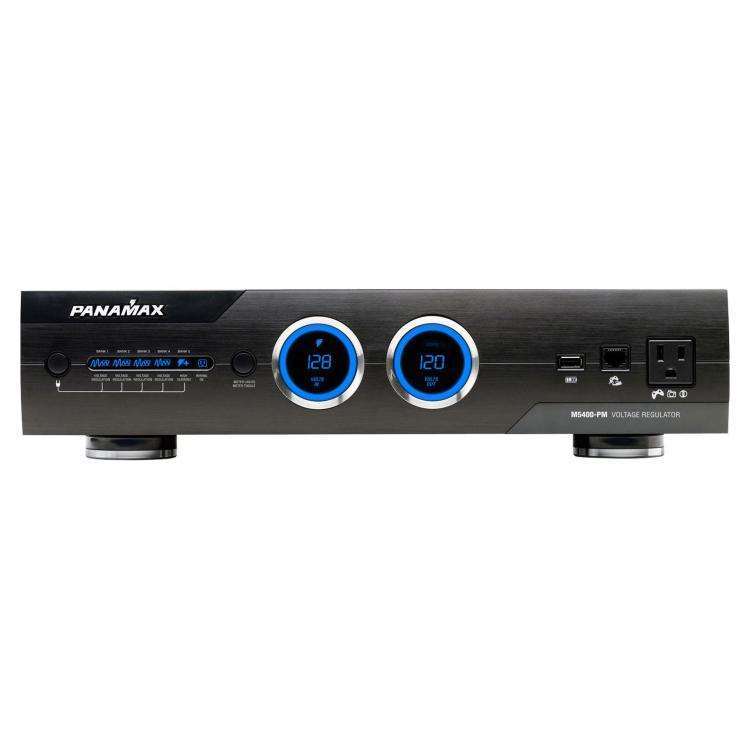

PANAMAX M5400-PM MAX 5400 POWER MANAGEMENT W/VOLTAGE REGULATION, 2RU, 11 OUTLETS
Regulates Voltage, Improves Picture and Sound Quality, Monitors Incoming Line Voltage, and Reduces Cross-Contamination Between Components. Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.
Level 4+ Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums, and visual artifacts) and allows your A/V equipment to perform up to its full capability.
Panamax™ patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.
The M5400-PM is designed to provide noise isolation between five isolated outlet banks including two high current outlets so that any noise created by an A/V component can not contaminate the power going to equipment plugged into another outlet bank.
Key Features:
- Clean Power Level 4+ Panamax PM family™ highest level of power filtration plus voltage regulation ensure components receive a consistent level of clean power. Improves picture and sound quality by eliminating noise across the entire AC bandwidth.
- Voltage Regulation Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.
- AVM (Automatic Voltage Monitoring) Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.
- High Current Outlets 2 outlets for equipment with high power demands (Amps/Subwoofers).
- USB Charger 1 front panel 500mA USB charger. May not recognize all devices. Check manufacturer power specifications of USB device.
- Gaming LAN Port Easy access to LAN port on front panel. Perfect for online gaming.
- 5 Isolated Outlet Banks Isolating outlet banks from one another prevents noise contamination between components.
- 12 Volt Trigger Allows source equipment to activate or deactivate the switched outlets on the M5400-PM.
- Power Sequencing Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.
- 11 Outlets 5 Always On, 4 Switched, 2 Switched High Current.
General
- Dimensions 17 in. W x 12.75 in. D x 3.5 in H, (4.1 in. Including feet)
- Weight 20 lbs.
AC Power
- Line Voltage 120V, 60Hz
- Total Current Capacity 15 A (1800 W)
- Voltage Protection Rating (UL1449 3rd Edition, 3,000A) 500V
- Protection Modes L-N, L-G, N-G
- Initial Clamping Level 200V Peak, 141 V RMS
- Energy Dissipation 2350 Joules
- Peak Impulse Current 75,000 Amps
- Catastrophic Surge Circuit Yes
- Thermal Fusing: Yes
- Auto-resetting Over-voltage shutoff 142 VAC ± 8 VAC
- Auto-resetting Under-voltage shutoff 86 VAC ± 6 VAC
EMI/RFI Noise Filtration
- Bank 1 Up to -86 db (100 KHz – 2 MHz)
- Bank 2 Up to -91 db (100 KHz – 2 MHz)
- Bank 3 Up to -81 db (100 KHz – 2 MHz)
- Bank 4 Up to -100 db (100 KHz – 2 MHz)
- Bank 5, High Current Outlets Up to -81 db (100 KHz – 2 MHz)
Voltage Regulation (Banks 1-4)
- Power / Current 1500 VA / 12A
- Input Voltage Range: 100-136 VAC
- Output Voltage Range: 120 VAC ± 6 VAC
- Buck Stage: reduces voltage in the 125-136 V range
- Boost Stage 1: boosts voltage in the 109-119 V range
- Boost Stage 2: boosts voltage in the 100-109 V range
DC Trigger Input
- Jacks 3.5mm (1/8”) mono mini-plug
- Voltage and Polarity 3 - 24V DC, Bidirectional
- Current Requirement 4.6 mA @3V, 58 mA @24V
DC Trigger Output
- Pass through no delay
- Positive = Tip, Negative = Ring
LAN Protection
- Clamping Level 60V ± 5V
- Compatibility 10/100bT
- Connectors RJ-45
- Wires Protected: 8-Wires
USB Circuit
- Jacks USB-A
- Power Delivery 500 mA @ 5VDC
Telco Protection
- Fuseless/Auto-resetting Yes
- Clamping Level 260V
- Capacitance 30pf (approx.)
- Suppression Modes Metallic & Longitudinal
- Wires Protected 2-Wire, Pins 4 & 5
- Connectors RJ-11
Universal Coax Protection
- HD 1080 i/p Ready Yes
- Shielded Yes
- Clamping Level 75V
- Frequency Range 0 MHz - 2.2 GHz
- Insertion Loss < 0.5 dB
- Connectors Female “F”, Gold Plated
- Bidirectional Yes
