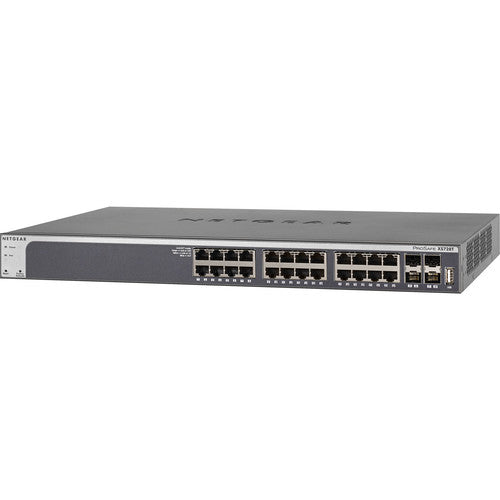

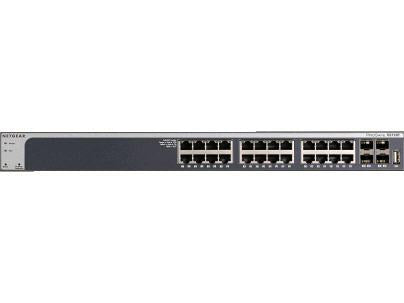

NETGEAR XS728T-100NES ProSAFE XS728T 28-Port 10-Gigabit

The XS728T provides comprehensive L2 features in order to meet your current and future needs on virtualization, converged network and mobility. Some of the main features include:

• Advanced VLAN features such as Protocol based VLAN and MAC-based VLAN
• Advanced QoS (Quality of Service) with L2-L4 awareness and 8 priority queues
• Static routing
• Private VLAN
• Dynamic VLAN assignment
• IGMP and MLD snooping
• Advanced Security
• IPv6 for management, QoS, and ACL

• 10GBase-T, like other Base-T technologies, uses the standard RJ45 Ethernet jack
• It is backward compatible, auto-negotiating between higher and lower speeds - thereby not forcing an all-at-once network equipment upgrade
• Cat5/Cat5E cables are supported for Gigabit speeds; Cat6 twisted-pair copper cabling is the minimum requirement for 10 Gigabit up to 98.4'
• Cat6A or newer Cat7 cabling allow for up to 328.1' 10GBase-T connections

• 10G connection to 10G-capable servers and network storages
• L2+/Layer 3 Lite features make it a cost-effective core switch for SMB and virtualization environment
• Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 Support
• Static routing helps to route internal traffic for more efficient use of network resources
• IGMP and MLD snooping, providing advanced multicast filtering

• 10G switch helps to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
• 10 Gigabit Ethernet provides better scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
• Up to eight 10 Gigabit Ethernet links can be aggregated into a virtual 80-Gbps connection
• 10 Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently

• Easy to manage via web-Based Management GUI or Smart Control Center for multi-switch deployment
• Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
• Dual firmware images, improving reliability and uptime to your network

24 10GBase-T Connections: Support low-latency, line-rate 10G Copper "Base-T" technology with backward compatibility to Fast Ethernet and Gigabit Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat6 RJ45 short connections (up to 300m) and Cat6A / Cat 7 connections up to 100m
4 (dedicated) SFP+ 10G Fiber Ports: Backward compatible to Gigabit fiber. Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links
USB Port: Quickly and conveniently upgrade or restore firmware or load configuration settings file
Energy Efficient Ethernet (IEEE 802.3az): Maximum power reduction for ongoing operation cost savings

Dynamic VLAN Assignment: IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network
Static Routing: A simple way to provide segmentation of the network with internal routing through the switch - reserving the router for external traffic routing only, making the entire network more efficient
Comprehensive IPv6 Support for management, ACL, and QoS: Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement
Private VLAN: Help reduce broadcast with added security
IGMP Snooping and MLD Snooping: Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router
Robust security features: Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users

• 802.1x authentication
• Port-based security by locked MAC
• ACL filtering to permit or deny traffic based on MAC and IP addresses

Comprehensive QoS features: Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video

• Port-based or 802.1p-based prioritization
• Layer 3-based (DSCP) prioritization
• Port-based rate limiting

DHCP Snooping: Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network
Dual firmware Images and configuration files: Dual firmware image and dual configuration file for transparent firmware updates/configuration changes with minimum service interruption
Protected Ports: Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, therefore, improve the security of your converged network where your sensitive phone conversations can stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration


DHCP Snooping: Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch
Dynamic VLAN Assignment (RADIUS): IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network
Private LAN: Private VLANs help reduce broadcast with added security
Dual Firmware Images and Configuration Files: Dual firmware image and dual configuration file for transparent firmware updates/configuration changes with minimum service interruption

• Primary Information

  Form Factor:	SFP+
  Data Transfer Rate:	10 Gbps
  Data Link Protocol:	10 Gigabit Ethernet
  Networking / Ports Qty:	28

• Dimensions&Miscellaneous

  Width:	17.32 Inch
  Depth:	12.20 Inch
  Height:	1.69 Inch

• UNSPSC Code

  UNSPSC Code:

  43222612
