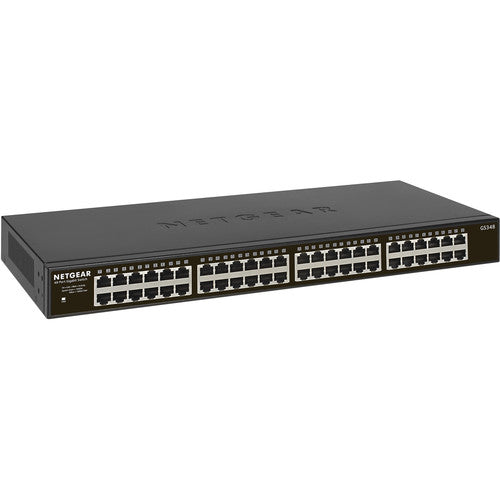

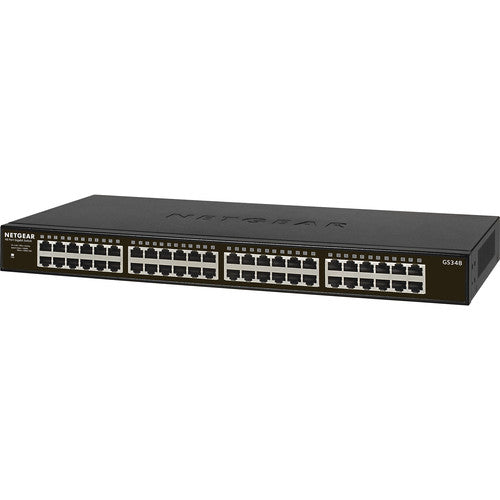

The Netgear GS348 48-Port Gigabit Ethernet Unmanaged Switch provides a straightforward plug-and-play solution for expanding your home or small office's network connections. With a switching capacity of 96 Gb/s (non-blocking) and a 1.44 Mpps forwarding capacity, connecting the 48-port switch to your network provides you with additional Gigabit Ethernet ports to plug devices such as computers, gaming consoles, access points, and network storage. Featuring a plug-and-play design, a rugged metal enclosure, and no fan, this desk or rackmounted unmanaged switch is designed for easy installation and quiet operation.
Auto-MDI/MDIX
With Auto-MDI/MDIX support, you will not need crossover cables to connect additional switches and hubs.
Non-Blocking Switching
The switch employs a non-blocking switching architecture that automatically adjusts the maximum data throughput to the wire's speed.
Energy-Efficient
In addition to having a fanless design, this switch features an Energy Efficient Ethernet standard and other technologies to save power.
Interfaces
| Ports |
48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Queuing |
Weighted Round Robin (WRR) |
| Jumbo Frames Support |
9216 Bytes |
| MAC Address Table Size |
8K |
Standards
| Supported IEEE Standards |
802.1p, 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x |
Performance
| Latency |
4 µs |
| Forwarding Rate |
1,448 Mpps |
| Switching Bandwidth |
96 Gb/s (Non-Blocking) |
| Packet Buffer |
1.5 MB |
Electrical
| Power Draw |
23.00 W (Max)
8.81 W (Standby) |
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz at 1 A |
| AC Input Power |
VAC50 / 60 Hz |
| Power Supply Type |
Internal |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
90% |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
| Storage Humidity |
95% |
| Storage Altitude |
10,000' / 3048 m |
General
| Cooling System |
Passive |
| Mean Time Between Failures (MTBF) |
1,094,297 Hours |
| Material of Construction |
Metal |
| Indicator Lights |
Link/Activity, Power |
| Dimensions |
17.32 x 7.95 x 1.69" / 440 x 202 x 43 mm |
| Weight |
6.97 lb / 3.16 kg |
Packaging Info
| Package Weight |
9.15 lb |
| Box Dimensions (LxWxH) |
19.9 x 11.5 x 3.1" |
