Mircom TX3-CX-4K-A TX3-Series 4-Door Card Access System

Mircom TX3-CX-4K-A TX3-Series 4-Door Card Access System

$3,580.00

Product Overview

The TX3-CX-4K-A controller conveniently houses two 2-door controller boards providing a 4-door system kit. The chassis can hold up to four 2-door controller boards in total, providing the provision to add two additional 2-door controller boards to extend the number of doors

Main Features
  • The system comes with 4 TX3-P300-HA card readers and one IP module, which can allow property managers/programmers to program the system remotely. The system can also be connected with additional control panels using RS-485 (up to 63 boards). The chassis can house up to four batteries either 4 or 6 AH. 2 transformers are included for each control panel board
  • TX3 Series Access Control System can integrate with all TX3 series control panels (Keypad Voice Entry, Touch Voice Entry, Elevator Restriction), making property managers life simple and easy
  • A hybrid architecture that combines the best of TCP/ IP and RS-485. All panels can be networked via RS-485 or TCP/IP
  • The system comes with an IP module for easy local or remote programming
  • 8 supervised inputs for a wide selection of monitoring points that can be shared between the two card readers
  • Each 2-door controller board can provide up to 8 programmable outputs; 6 are Form C contacts (normally open/normally closed), two powered outputs provide 12 VDC power for up to 1 ampere of current combined
  • The number of inputs and outputs multiply as more 2 door controller boards are added
  • Providing up to 32 supervised inputs + 32 programmable outputs where 24 of them are formed C relay and 8 of them are powered (when using four 2-door controller boards/8 door card access system)
  • The Wiegand inputs support multiple different reader types such as Proximity, MIFARE, Biometrics, iClass, and BLE (ordered separately)
  • Supports all credential formats such as clamshell cards, graphic cards, key tags and wafers (ordered separately)
General Information

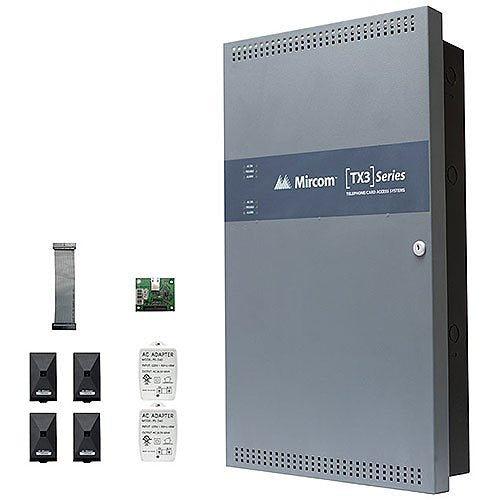

Name: Mircom TX3-CX-4K-A-256 TX3 Series 4-Door Control Kit, (1)Four Door Controller, (4)Proximity Card Readers, (2)Power supply, (1)Configuration Software, (1)USB PC Connection Cable, Mircom
Category: Mircom, Access Control, Control Panels, Control Panels
UPC Code: 628090280180
Country of Origin: Canada. Country of origin is subject to change.
