Marshall RS7-HR Rack Mountable RS232/RS422 Distribution Box for up to 7 Pan Tilt Zoom Cameras Marshall RS7-HR Rack Mountable RS232/RS422 Distribution Box for up to 7 Pan Tilt Zoom Cameras
Marshall RS7-HR Rack Mountable RS232/RS422 Distribution Box for up to 7 Pan Tilt Zoom Cameras
Marshall RS7-HR Rack Mountable RS232/RS422 Distribution Box for up to 7 Pan Tilt Zoom Cameras

Marshall RS7-HR Rack Mountable RS232/RS422 Distribution Box for up to 7 Pan Tilt Zoom Cameras

$209.00

Product Overview

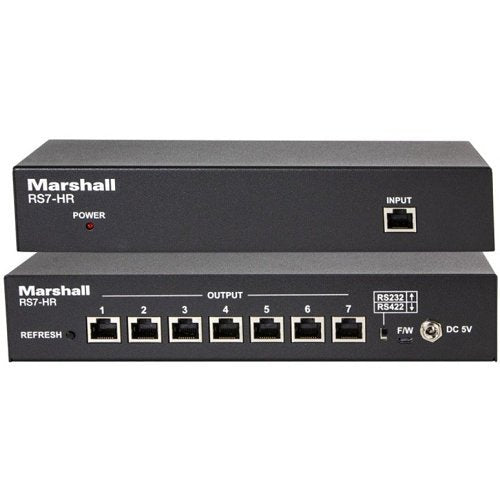

RS7-HR CONNECTION

The RS7-HR can be set on a desk top or you can use the included 1RU rack ears to install a rack. Please note the following:

  • Before connecting your equipment please select RS232 or RS422 on the back of the unit

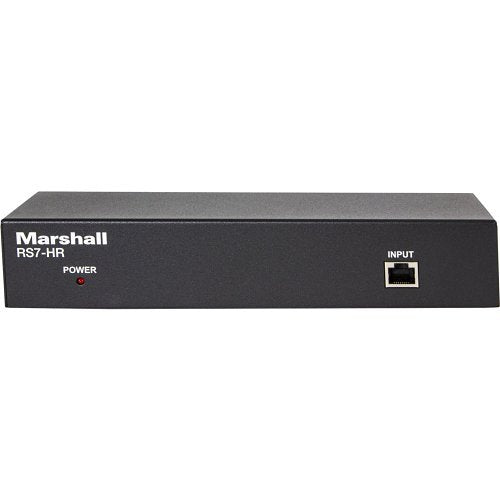

  • Connect your controller to the Input connection on the front of the RS7-HR using a Cat 5/6 cable
  • On the back of the RS7-HR connect your Cat 5/6 cables from the RS7-HR to each camera (you may need optional CV620-CABLE-07 Adapters for RS232)
  • You will now connect power to the RS7-HR, you will see a red indicator light appear on the front of the unit, now you will push the refresh button once
  • If you disconnect a camera or add a camera you will need to push the refresh button again
Main Features
  • Splits one Cat (RJ45) control cable to 7 cameras via Home Run.
  • Easy and clean setup from Marshall Controllers (VS-PTC-IP, VS-PTC-200) and others.
  • Extends usable RS232 Cat cable runs for control of cameras to 100m from controller to RS7-HR box and another 100m to each of seven camera locations (200m total). Using RS422 its extends (300m + 300m for a total of 600m).
  • Easy access dip switches to switch between RS232 and RS422.
  • Refresh button is used when any changes are made (add/remove, dip switch change)
  • Rack mount ears provided (1 pair) for 1RU 19" rack mount and small ears (1 pair) for optional table or wall mount.
General Information
Name: Marshall RS7-HR Rack Mountable RS232/RS422 Distribution Box for up to 7 Pan Tilt Zoom Cameras, Marshall Electronics, Inc, Marshall Electronics
Category: Marshall Electronics, Pro AV, Commercial Video Conferencing, Video Conference Interface Units
UPC Code: 801813225884
Country of Origin: Taiwan. Country of origin is subject to change.

More information View images
