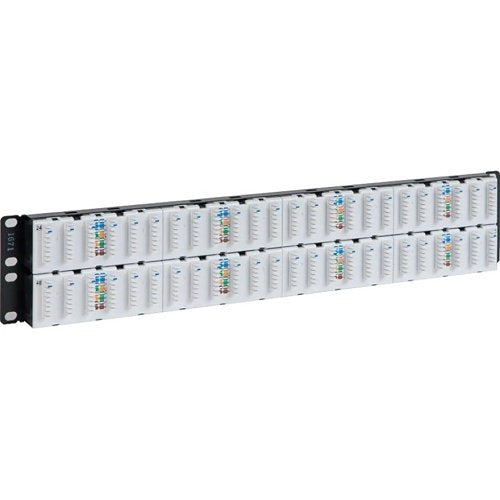

ICC's Category 6A 2U 48-port, 110-type UTP, 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-type insulation displacement connectors (IDCs) are designed to provide optimum permanent and channel link performance and reduce potential Alien Crosstalk (AXT). Jacks are grouped in six-port modules for quick administration and easy labeling. The high-density design occupies 2 rack mount space (RMS) and measures 19" x 3.50".
Features
- Vertical 110-Type IDC connections reduces potential Alien Crosstalk (AXT).
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
- Enhanced crosstalk cancellation and reduced return loss.
- Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware Component Rating.

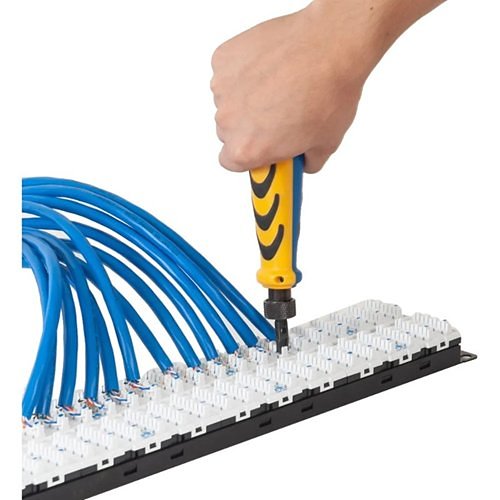

- 110-Type IDC termination help reduces installation time and improves wire retention.
- 50 micro-inch gold plating on all modular contacts to protect from corrosion.
- 2 rack mount spaces (RMS); Mounts on industry-standard 19" wide racks.
- T568A or T568B wiring schemes; not compatible with 110-type patch plugs.
- UL Listed.
- Vertical 110-Type IDC connections reduces potential Alien Crosstalk (AXT)
- Enhanced crosstalk cancellation and reduced return loss for high bandwidth network requirements
- Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware Component Rating requirements
- 110-Type IDC termination help reduce installation time and improve wire retention
- 50ยต" gold plating on all modular contacts to protect from corrosion
- Mounts on industry standard 19" wide racks or equipment
- 2 rack mount space (RMS)
- T568A or T568B wiring schemes
- Meets TIA/EIA-568C.2 Cat 6A connecting hardware require
- UL listed
Name: ICC ICMPP0486B AT6A UTP 48-Port Patch Panel in 110 Type, 2U RMS, ICC, ICC
Category: ICC, Data Comm & Networking, Patch Panels, Network Patch Panels
Country of Origin: Taiwan. Country of origin is subject to change.
