Product Overview

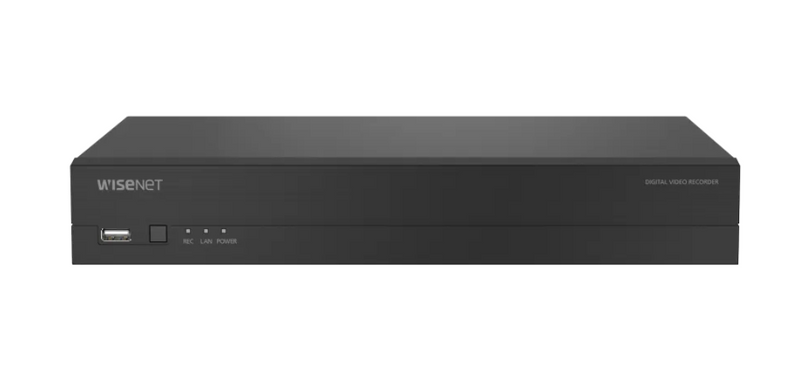

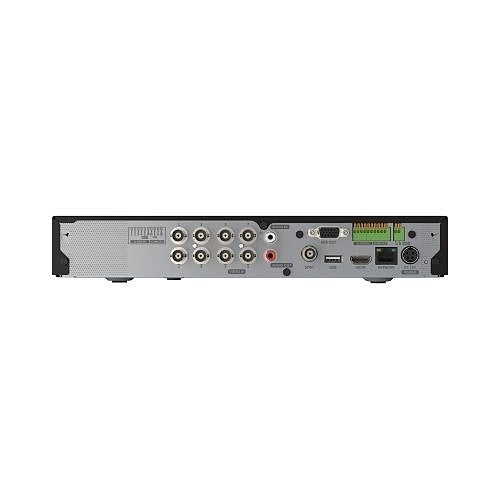

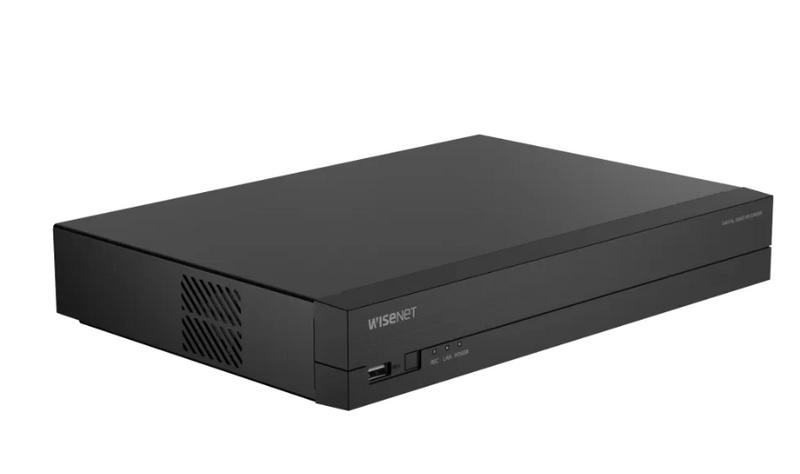

Discover the Hanwha ARD-810-2TB NVR, a versatile 5-in-1 8-Channel Pentabrid DVR that supports AHD, HDTVI, HDCVI, CVBS, and IP inputs. It offers a total of 10 channels, combining up to 8 analog and 2 network channels, with a maximum support of 10 channels depending on usage. Capture clear footage up to 5MP with efficient H.265, H.264, and MJPEG codecs. Enjoy smooth recording at 12fps for 5MP, 15fps for 4MP, and 15fps for 2MP resolutions. The device handles a maximum recording bandwidth of 40Mbps, includes 4 alarm inputs, 1 relay output, and coaxial control for enhanced security management. Store data on a 6TB SATA HDD, and view footage on HDMI/VGA dual monitors with an additional spot monitor output. Connect effortlessly to mobile devices via P2P service using a QR code. Upgrade your surveillance system now with this reliable and powerful NVR solution.
Main Features
- 5-in-1 8-Channel Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP Inputs
- Total 10-Channels available (8-Channel Analog Maximum + 2 additional Channel Network, Network Maximum 10 Channel supported, depending on number of analog channels), up to 5MP. 1 IP channel can be utilized for each analog channel not being used
- H.265, H.264, MJPEG Codec
- 12fps at 5MP (Half resolution recording), 15fps at 4MP (Half resolution recording), 15fps at 2MP recording
- Recording Bandwidth Max. 40Mbps
- 4-Alarm input and 1 relay output, coaxial control
- Up to 1 SATA HDD (6TB/HDD)
- HDMI/VGA Dual monitor output, 1x spot monitor output
- P2P Service (QR code connect) for easy mobile app connection
General Information
Name: Hanwha ARD-810-2TB NVR
Category: Hanwha Vision, Video Surveillance, Recording Devices & Servers, Hybrid Video Recorders
UPC Code: 8801089218995
Country of Origin: Vietnam. Country of origin is subject to change.
