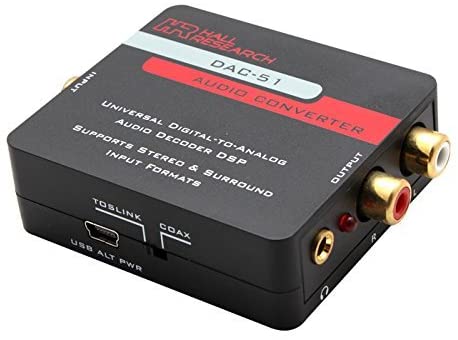

The DAC‐51 Digital to Analog Audio Decoder uses 24‐bit audio DSP and 192KHz DACs to convert virtually any type of digital audio input to stereo output.
It supports uncompressed two‐channel PCM as well as compressed multi‐channel bit‐stream audio (such as 5.1 channel audio) and provides two channels of analog outputs both on RCA as well as a 3.5mm headphone jack. When the input is multi‐channel, the device down‐mixes (using a downmixing or fold‐down algorithm) the digital channels to 2‐channel stereo for easy connection to entertainment devices. When the input audio is multichannel the unit intelligently combines Left Front, Left Rear, Right Front, Right Rear, Center, and Subwoofer (LFE) in a way to create two-channel stereo output.
Both TOSLINK optical, coaxial digital SPDIF inputs are provided. The user can select which input to use via a slide switch on the box.
Product Highlights:
- Converts PCM or DTS/AC3 digital source audio to analog 2.0 ch stereo output
- Provides both RCA and TOSLINK optical inputs
- Plug and Play
- Power Supply Included
| Input Port |
(1) TOSLINK SPDIF
(1) Coaxial RCA |
| Output Ports |
(2) RCA (LR)
(1) 3.5mm TRS Line Level Stereo Output jack |
| Signal To Noise Ratio |
120dB |
| Channel Separation |
85dB |
| Frequency Response |
20Hz ‐20KHz |
| Weight |
40g (1.5 oz) |
| Dimensions |
75 x 55 x 20 mm (2.95 x 2.16 x 0.79 inch) |
| Power Supply |
Input: 110-240 vAC 50/60 Hz
Output: 5-6vDC, 1.0 ADC, 250 mADC nominal, 2.1mm |
