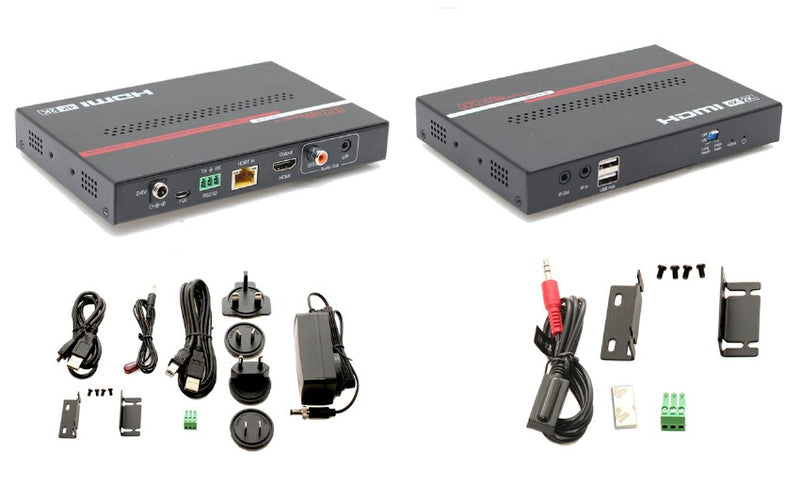

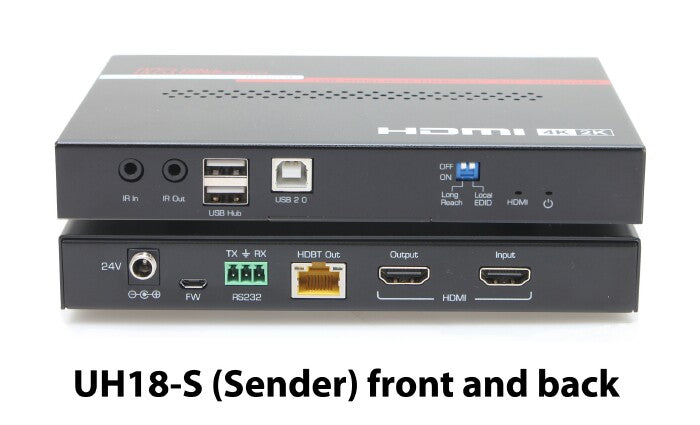

HALL TECHNOLOGIES UH18 4K USB 2.0 EXTENDER SENDER + RECEIVER HALL TECHNOLOGIES UH18 4K USB 2.0 EXTENDER SENDER + RECEIVER HALL TECHNOLOGIES UH18 4K USB 2.0 EXTENDER SENDER + RECEIVER
HALL TECHNOLOGIES UH18 4K USB 2.0 EXTENDER SENDER + RECEIVER
HALL TECHNOLOGIES UH18 4K USB 2.0 EXTENDER SENDER + RECEIVER
HALL TECHNOLOGIES UH18 4K USB 2.0 EXTENDER SENDER + RECEIVER

HALL TECHNOLOGIES UH18 4K USB 2.0 EXTENDER SENDER + RECEIVER

$815.50

The UH18 extends HDMI Video, USB, IR, and RS-232 on a single CAT6 cable to over 100 meters. It is perfect for allowing access to a PC from a remote user location and can be used to place the PC in a secure location away from the user station. The Sender provides local HDMI loop output as well as a USB hub so users can access the PC locally as well as  from a  remote station.

Product Highlight:

  • Extends 4K@60Hz up to 100 m and 1080p@60Hz up to 150m
  • HDMI 2.0, HDCP 2.2 compliant and supports HDR10
  • Perfect for KVM Extension (accessing a PC from a remote location)
  • HDMI loop-output on the Sender
  • Audio Extraction on the Receiver(Analog and SPDIF)
  • Support LPCM 7.1, DTS-HD, Dolby-HD
  • Fully compliant with HDBaseT™ 2.0 specifications
  • Bi-directional IR and RS-232 Pass through
  • Plug and Play Installation – takes minutes to setup
  • EDID Management
  • Only one power supply needed (power is sent over UTP cable to other side)
  • Perfect for Server Rooms with local and remote access to the PCs
Video Standards
HDMI 1.4/2.0 and HDCP 1.4/2.2
Resolutions
DTV/HDTV up to 4K@60 YUV 4:4:4
Audio HDMI
LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD and DTS-HD Master Audio
Extraction
Analog (Line Level) and SPDIF
Note: Analog output is only active when the HDMI Audio is 2-channel. SPDIF output is always active regardless of audio format of 2.0, 5.1 or 7.1 channels
Peripherals RS-232
Full Duplex Pass-through at any baud rate
USB
Supports all USB 2.0/1.1 Devices
IR
Bi-directional Pass-through 56K carrier
Power Input
100-240 VAC, 50-60 Hz 0.8 A (US/EU Standard, CE/FCC/UL Certified)
Output
24 VDC @ 1.0 A
Consumption
14 Watts
Type
DAL POC (Power only required at one end)
Temperature Storage: +32 to +140 °F (0 to 40 °C) / 5% to 90%, non-condensing
Operating: +32 to +104 °F (0 to 40 °C) / 5% to 90%, non-condensing
Enclosure Metal (Steel)
Dimensions 6.87” (172.4 mm) W × 4.45” (113.2 mm) D × 0.95” (24 mm) H
All protrusions included
Weight Product
1.3 LbsShipping
5.2 Lbs (Sender + Receiver)
Safety CE
EMI/EMC CE, FCC Class A
MTBF 90,000 estimated
Warranty 3 years parts and labor
Weight 5.2 lbs
