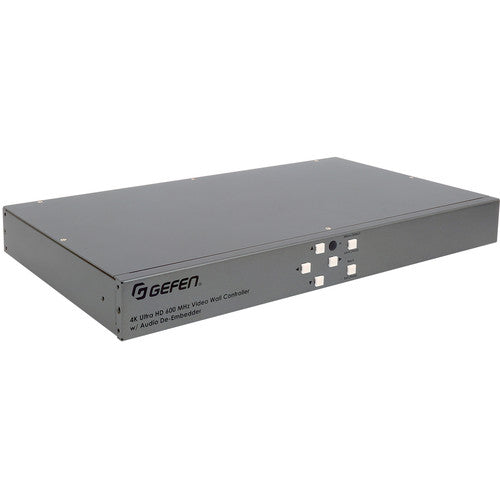

Display your UHD 4K source video to a video wall with up to four Full HD outputs with this UHD 4K 600 MHz 1x4 Video Wall Controller from Gefen. This controller supports up to UHD 4K60 HDMI input and four 1080p HDMI outputs, and it also features HDCP support. The unit can also de-embed the HDMI input audio into analog RCA stereo outputs for use with separate speaker systems.

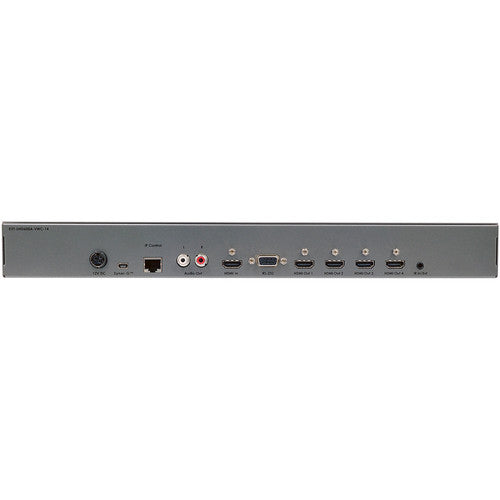

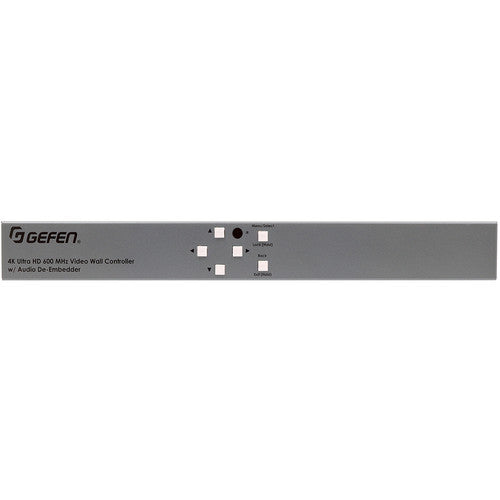

The controller settings are accessed by an RJ45 port over IP using the unit's web server, and it can also be configured via Telnet. The RS-232 DB-9 port can be used to plug in an automation control device that uses command line tools for configuration. The front-panel buttons allow you to control the menus and settings, or you can use the included IR remote controller to operate the system. If your remote is out of the line of sight, an IR extender module is included which plugs into the 3.5mm IR port to extend the signal.
The firmware is updated via the mini-USB port using the downloadable Gefen Syner-G software suite. Also included with the controller are 1 RU ears for rack mounting, a 6' locking HDMI cable, a 6' DB-9 cable, and a 12 VDC power supply.
