Gefen EXT-DVIKVM-LANTX DVI KVM Over IP Transmitter Gefen EXT-DVIKVM-LANTX DVI KVM Over IP Transmitter
Gefen EXT-DVIKVM-LANTX DVI KVM Over IP Transmitter
Gefen EXT-DVIKVM-LANTX DVI KVM Over IP Transmitter

Gefen EXT-DVIKVM-LANTX DVI KVM Over IP Transmitter

$585.00

Connect to one or more Gefen KVM-LAN receivers and send DVI, USB, RS-232, bi-directional stereo analog audio, and IR over IP using a Gigabit LAN. The Gefen DVI KVM Over IP Transmitter is a 1U, half-rack, rack-mountable device and supports resolutions up to 1080p and WUXGA. It can also be incorporated into a 65,000 transmitter/receiver setup, depending on the network bandwidth and number of ports on your network switch.

Features
  • Transmit DVI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit LAN
  • Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
  • Any combination of DVI, HDMI, and VGA transmitters and receivers can be used together to create a "Virtual Matrix"
  • Can be accessed by any receiver unit via a web browser on a mobile device or computer, or via the Gefen Keyboard Switching Controller software
  • Can be incorporated into a 65,000 transmitter/receiver setup, depending on the network bandwidth and number of ports on your network switch

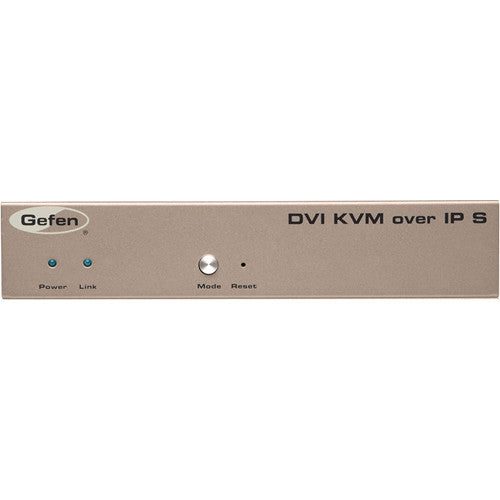

  • Mode button for sharpness or motion optimization of image
  • Easy-to-use web server interface for quick system set-up, operation, and firmware upgrade
  • Locking power supply connector
  • 1U tall, half-rack width enclosure, rack-mountable using the optional EXT-RACK-1U
  • Surface mounting brackets included

Gefen EXT-DVIKVM Specs

General

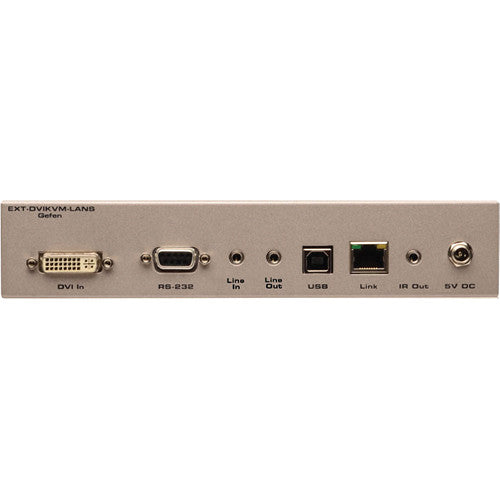

Inputs/Outputs Transmitter:
1 x 1/8" / 3.5 mm (Audio)Input
1 x DE-9/DB-9 (RS232) FemaleInput
1 x DVI (Unspecified) FemaleInput
1 x USB-B FemaleInput
1 x 1/8" / 3.5 mm (Audio)Output
1 x 1/8" / 3.5 mm (IR)Output
1 x RJ45 (Ethernet)Output
Power
Power Consumption 10 W
DC Input Power 5 VDC
Physical
Dimensions 8.4 x 1.7 x 4.5" / 21.3 x 4.3 x 11.4 cm
Weight 5.7 lb / 3.0 kg
Packaging Info
Package Weight 4.8 lb
Box Dimensions (LxWxH) 14.2 x 11.8 x 3.6"
