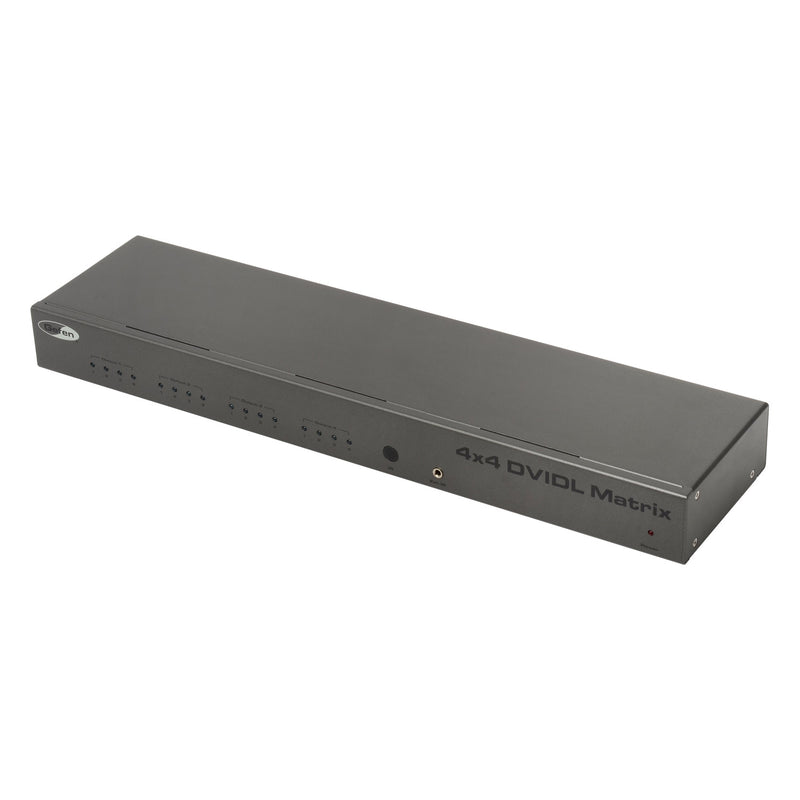

Gefen EXT-DVI-444DL 4×4 DVI Dual Link Matrix Gefen EXT-DVI-444DL 4×4 DVI Dual Link Matrix
Gefen EXT-DVI-444DL 4×4 DVI Dual Link Matrix
Gefen EXT-DVI-444DL 4×4 DVI Dual Link Matrix

Gefen EXT-DVI-444DL 4×4 DVI Dual Link Matrix

$1,070.99
Brand: GefenReviews
Special order products normally take 10–14 business days to ship, depending on vendor availability.
  • Free US shipping on this item.
  • 30-day returns counted from delivery. Return policy
  • Manufacturer's warranty from Gefen. Warranty
  • Need a quote? Add it to your cart and download a PDF quote, or ask for volume pricing.
D Questions about this product? Daniel and the team reply fast, usually within minutes. Chat with us now or email us.
More information View images
Reviews

Description

The Gefen EXT-DVI-444DL 4×4 Dual-link DVI Matrix easily combines any four cross-platform Dual Link DVI video display outputs and four Dual Link DVI digital displays without networking. Our 4×4 DVI Dual Link Matrix provides a simple, reliable and highly effective method of creating multiple Dual Link DVI display consoles, with each console capable of accessing any one of the Dual Link DVI video sources at any time by remote control. You also have the option of setting up the four displays locally or extending them with a Gefen extender.

Video Support

Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400

Features

  •  Increases your productivity by letting you view any four Dual Link DVI video sources on any four Dual Link DVI displays
  •  Maintains highest resolution digital video with no loss of quality
  •  Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400
  •  Supports DDWG standards for DVI monitors
  •  Includes rack ears
  •  Discrete IR Remote (included)

Specifications

Maximum Pixel Clock: 2 x 165 MHz

Input Video Signal: 1.2 volts p-p

Input DDC Signal: 5 volts p-p (TTL)

Dual Link Maximum Video Range: 3840×2400

DVI Connector: DVI-I 29 pin female (digital only)

Power Supply: 5V DC

Power Consumption: 30 Watts (max)

Dimensions: 17.1" W x 1.8" H x 4.2" D

Rackmountable: 1U Rack Space

Shipping Weight: 9 lbs.

  • Length13.2 (Inches)
  • Width8.1 (Inches)
  • Height3.6 (Inches)
  • Weight2.9 (Lbs)
  • Unit of MeasureEach
  • UPC888814999778

  • Shipping Info

  • Supported Audio FormatsAnalog: L/R Stereo
  • Digital: 2-Channel PCM and up to 5.1 channels of Bitstream
  • Analog Line Input (Sender)(1) 3.5mm mini-stereo jack
  • Analog Line Output (Receiver)(1) 3.5mm mini-stereo jack
  • Optical Digital Audio Input (Sender)(1) TOSLINK®
  • Optical Digital Audio Output (Receiver)(1) TOSLINK®
  • Coaxial Digital Audio Input (Sender)(1) RCA, female
  • Coaxial Digital Audio Output (Receiver)(1) RCA, female
  • RS-232 port (Sender/Receiver)(1) 3.5mm stereo jack, female, DB-9 adaptor included
  • IR In/Ext (Sender/Receiver)(1) 3.5mm mini-stereo jack
  • IR Out (Sender/Receiver)(1) 3.5mm mini-mono jack
  • IR Extender typeEXT-RMT-EXTIRN
  • Ethernet port (Sender)(1) RJ-45, shielded, PoE
  • Ethernet ports (Receiver)(2) RJ-45, shielded, one with PoE
  • Channel Up button (Receiver)(1) tact-type
  • Channel Down button (Receiver)(1) tact-type
  • Reset button (Sender/Receiver)(1) tact-type, recessed
  • Program button (Sender/Receiver)(1) tact-type, recessed
  • Program Select switch (Sender/Receiver)(1) slide-type, recessed
  • Link Indicator (Sender/Receiver)(1) LED, green
  • Power Indicator (Sender/Receiver)(1) LED, blue
  • Power Supply jack (Sender/Receiver)5V DC, 2.5mm pin and 5.5mm barrel, locking
  • Power Requirement (Sender/Receiver)5V DC, or PoE (802.3af standard)
  • Power ConsumptionSenderTBD
  • ReceiverTBD
  • Operating Temperature (Sender/Receiver)+32 to +122°F (0 to +50°C)
  • Operating Humidity (Sender/Receiver)5% to 90% RH, non-condensing
  • Storage Temperature (Sender/Receiver)-4 to +185°F (-20 to +85°C)
  • Storage Humidity (Sender/Receiver)0% to 95% RH, non-condensing
  • MTBFSender: 50000 hours
  • Receiver: 50000 hours
  • Dimensions (W x H x D, without connectors or feet)Sender: 8.4" x 1.0" x 4.9" (214mm x 25mm x 123mm)
  • Receiver: 8.4" x 1.0" x 4.9" (214mm x 25mm x 123mm)
  • Unit WeightSender: TBD
  • ReceiverTBD
  • Shipping WeightSender: TBD
  • Receiver: TBD
  •
  • * Features and specifications are subject to change without notice.** Pending features to be activated via an upcoming firmware update

  • Other Specifications

  • Receiver unit (EXT-ADA-LAN-RX)1
  • 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)1
  • 3.5mm-to-DB-9 Adaptor, M-M (ADA-MP-2-DB9-MM-AB)1
  • IR Extender (EXT-RMT-EXTIRN)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2

  • In The Box

  • Receiver unit (EXT-ADA-LAN-RX)1
  • 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)1
  • 3.5mm-to-DB-9 Adaptor, M-M (ADA-MP-2-DB9-MM-AB)1
  • IR Extender (EXT-RMT-EXTIRN)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2
