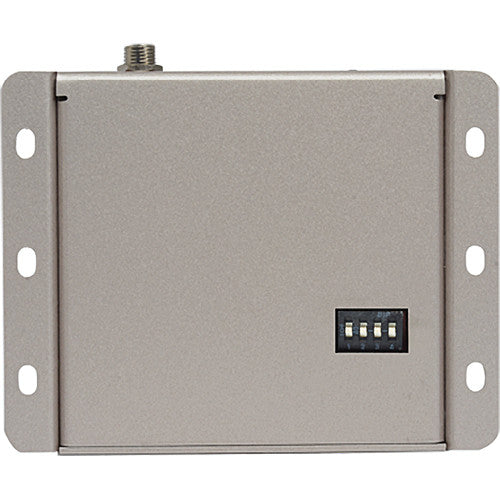

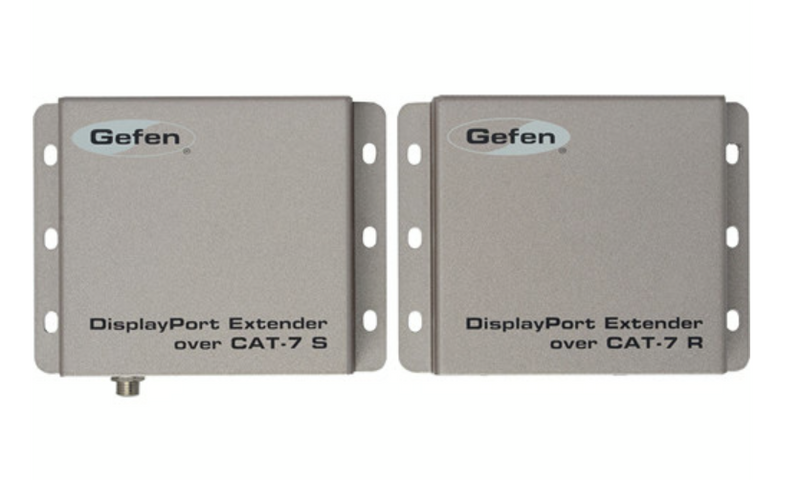

The Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 allows the installation of an HDTV display up to 100’ (30.48 m) away from a Display- Port source, using 2 CAT-7 cables. It supports HDCP and resolutions up to 1920 x 1200 (WUXGA) or 1080p full HD when using a single CAT-7 cable, and up to 2560 x 1600 (WQXGA) when using 2 cables.
The Receiver unit is powered by the first CAT-7 cable that extends the DisplayPort signal from the sender unit, eliminating the need for an external power supply on the receiver unit.
- Extends DisplayPort up to 100' (30.48 m)
- Supports resolutions up to 2560 x 1600 over 2 CAT-7 cables, and up to 1920 x 1200 or 1080p full HD over one CAT-7 cable
- HDCP compliant
- Supports DisplayPort 1.1a
- 16-position EQ rotary switch to compensate for cable skew
- HPD auto-calibration button
- Pre-emphasis switch
- Drive level switch
- Boost level switches
- Power on and link indicators
- Locking power supply connectors
- Surface-mountable
