Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender Set for HDMI
Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender Set for HDMI
Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender Set for HDMI
Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender Set for HDMI
Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender Set for HDMI

Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender Set for HDMI

$2,752.99

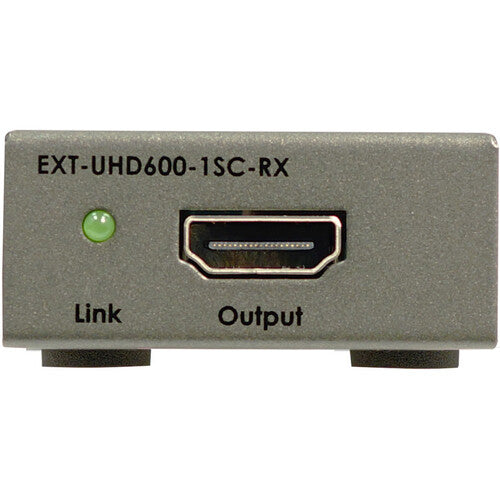

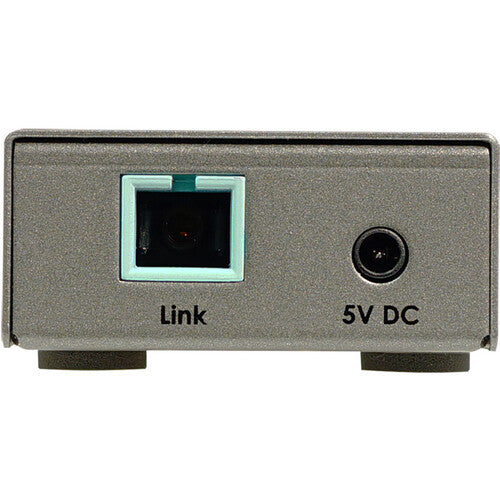

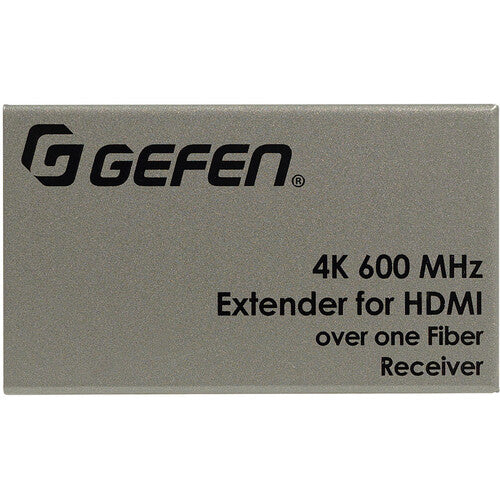

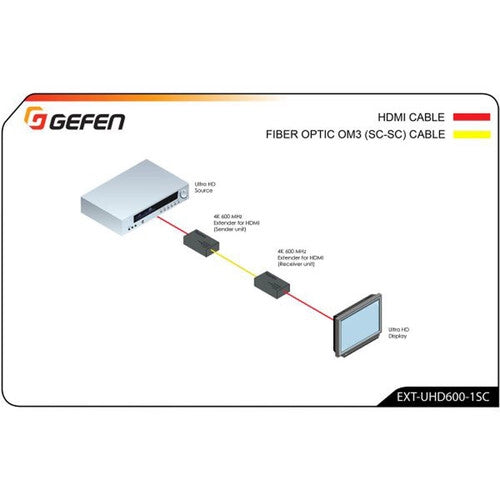

The 4K Ultra HD 600 MHz Extender Set from Gefen is a compact high-performance solution for extending the transmission range of uncompressed, full-bandwidth HDMI 2.0 audio/video with HDR up to 660' over a single strand of SC-terminated 50/125 μm OM3 or better multi-mode fiber-optic cable. It supports 18.2 Gb/s of bandwidth and 600 MHz TMDS Clock frequency. Full bandwidth support allows the Gefen extender to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160), and 4K Ultra HD (3860 x 2160) with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 are both supported.

The EXT-UHD600-1SC also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution) video. Multi-channel digital audio, including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, in Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI outputs. There is full electrical isolation between the transmitter and the receiver, meeting the stringent safety and EMC requirements for critical applications.

This extender can be powered from sources and displays featuring powered USB ports, or by using external power supplies. The transmitter and receiver are plug-and-play and work without any setup. Their sturdy metal enclosures help provide immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming, and wherever 4K full bandwidth uncompressed video or end-to-end electrical isolation are essential.

Product Highlights:

  • Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920x1200)
  • Supports HDR (High Dynamic Range) 10-bit deep color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Supports 12-bit deep color at 1080p Full HD (60 Hz 4:4:4)
  • 3DTV pass-through
  • Lip Sync pass-through
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920x1200), with DVI-to-HDMI cables
