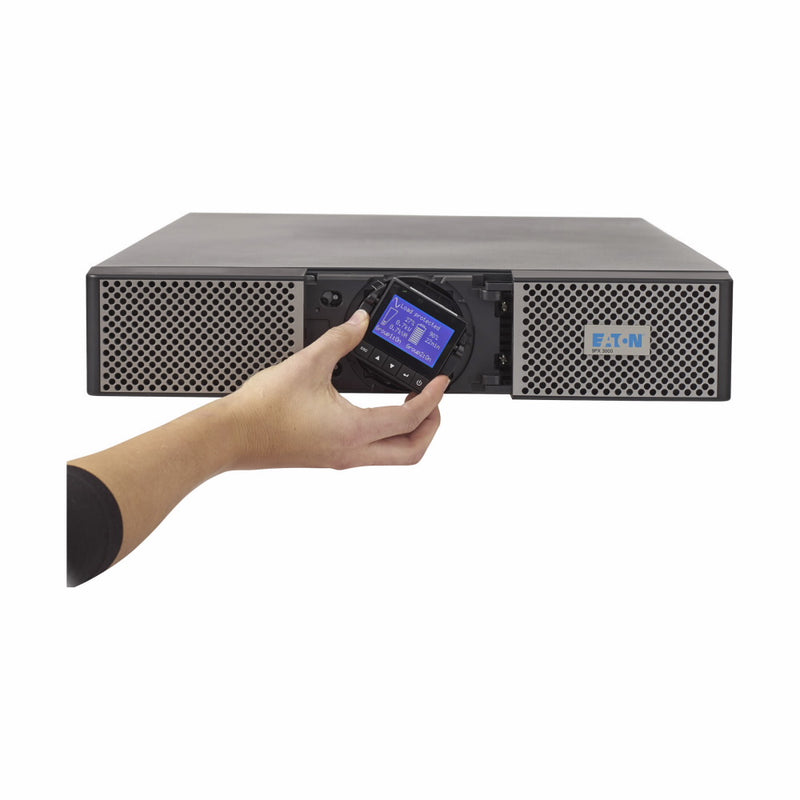

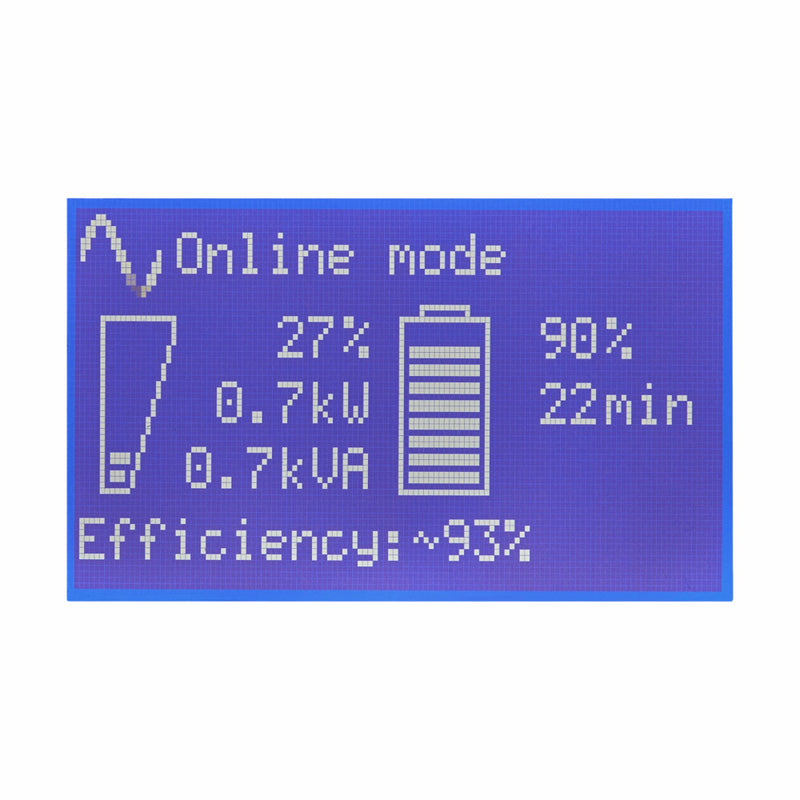

Delivering premium backup power and scalable battery runtimes, the Eaton 9PX UPS is the ideal solution for rack and stand-alone installations in harsh electrical and critical applications. With an advanced LCD screen interface and robust power management software, managing a UPS has never been easier with the 9PX-even in virtualized environments.
-
Primary Information
| Product Description: |

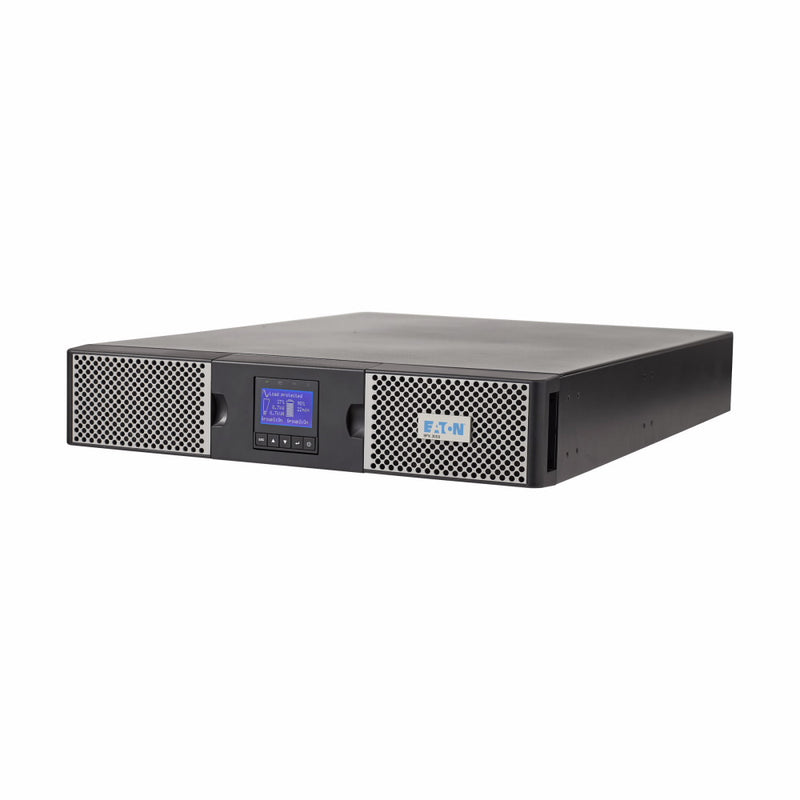

Eaton 9PX 9PX700RT - UPS - 630 Watt - 700 VA |
| Device Type: |
UPS - rack-mountable / external |
| Rack Size: |
2U |
| Weight: |
36.38 lbs |
| Input Voltage: |
AC 100/110/120/125 V |
| Output Voltage: |
AC 100/110/120/125 V ± 1% |
| Power Capacity: |
630 Watt / 700 VA |
| Input Connectors: |
1 x power NEMA 5-15 |
| Output connectors: |
8 x power NEMA 5-15 |
| Battery: |
Lead acid expandable |
| Run Time (Up To): |
11 min at full load |
| Networking: |
RS-232, USB |
| Included Accessories: |
Tower stand, 4-post rail kit |
| Color: |
Black, silver |
| Dimensions (WxDxH): |
17.3 in x 17.7 in x 3.4 in |
| Environmental Standards: |
ENERGY STAR |
| Manufacturer Warranty: |
2-year warranty |
-
General
| Device Type: |
UPS - rack-mountable / external |
| Height (Rack Units): |
2U |
| Color: |
Black, silver |
-
Power Device
| UPS Technology: |
On-line |
| Input Voltage: |
AC 100/110/120/125 V |
| Input Voltage Range: |
AC 100 - 144 / 60 - 144 V |
| Frequency Required: |
50/60 Hz |
| Input Connectors: |
1 x power NEMA 5-15 |
| Power Output Connectors Details: |
8 x power NEMA 5-15 |
| Output Voltage: |
AC 100/110/120/125 V ± 1% |
| Power Capacity: |
630 Watt / 700 VA |
| Efficiency: |
89.9% |
| Power Factor (PF): |
0.99 |
| Total Harmonic Distortion (THD): |
3 % |
-
Battery
| Type: |
Expandable |
| Technology: |
Lead acid |
| Features: |
Maintenance free, sealed |
-
Networking
| Remote Management Interface: |
RS-232, USB |
-
Expansion / Connectivity
| Interfaces: |
1 x management (RS-232) - RJ-45 ¦ 1 x USB |
| Expansion Slots: |
1 (total) / 1 (free) x expansion slot |
-
Miscellaneous
| Included Accessories: |
Tower stand, 4-post rail kit |
| Cables Included: |
Serial cable - external - 6 ft ¦ USB cable - external ¦ Power cable - integrated - 8 ft |
| Features: |
Advance Battery Management (ABM), LCD display, cold-start function, automatic self-test, Remote Emergency Power Off (REPO) |
| Compliant Standards: |
ANSI C62.41, CISPR 22, IEC 62040-2, RoHS, VCCI Class B, FCC Part 15 Class B |
-
Software / System Requirements
| Software Included: |
Eaton Intelligent Power Software Suite |
-
Sustainability Information
-
Manufacturer Warranty
| Service & Support: |
Limited warranty - 2 years |
-
Environmental Parameters
| Min Operating Temperature: |
32 °F |
| Max Operating Temperature: |
104 °F |
| Sound Emission: |
40 dB |
-
Dimensions & Weight
| Width: |
17.3 in |
| Depth: |
17.7 in |
| Height: |
3.4 in |
| Weight: |
36.38 lbs |
-
Special Feature
| COO: |
PHILIPPINES |
| TAA compliance: |
No |
-
