Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.
-
Primary Information
| Product Description: |

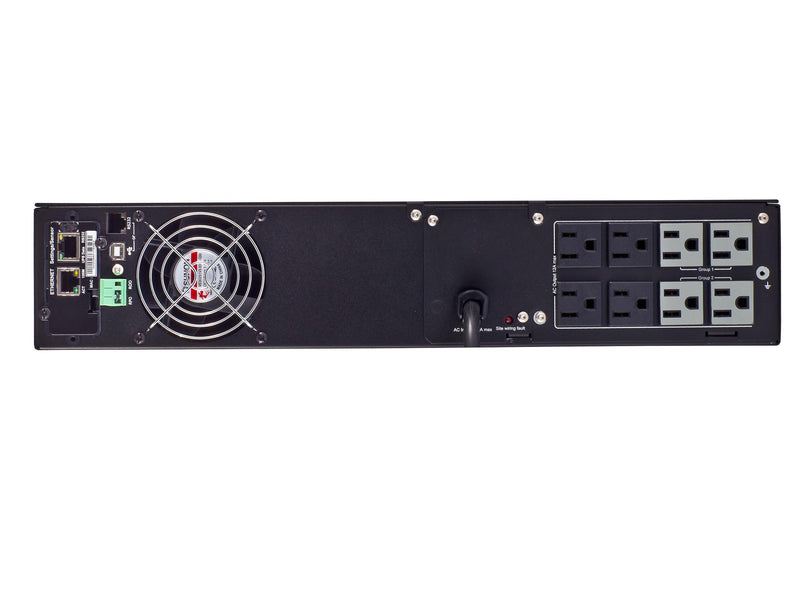

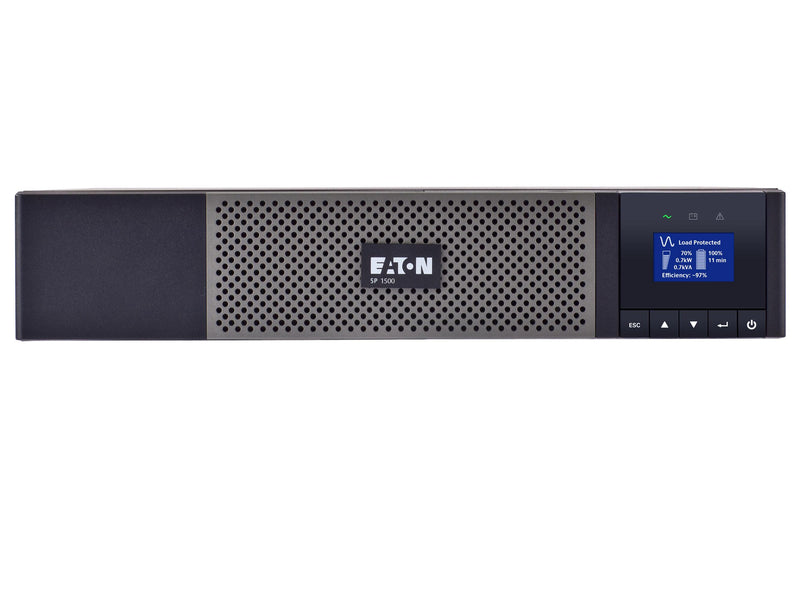

Eaton 5P 1500 VA 120V Rack/Tower 2U - UPS - 1.44 kW - 1440 VA - lead acid |
| Device Type: |
UPS - rack-mountable |
| Rack Size: |
2U |
| Weight: |
1.04 oz |
| Load Rating: |
Small workgroup server |
| Input Voltage: |
AC 100/120/127 V |
| Output Voltage: |
AC 120 V |
| Power Capacity: |
1.44 kW / 1440 VA |
| Input Connectors: |
1 x power NEMA 5-15 |
| Output connectors: |
8 x power NEMA 5-15 |
| Battery: |
Lead acid |
| Run Time (Up To): |
3 min at full load |
| Dimensions (WxDxH): |
17.4 in x 20.6 in x 3.4 in |
| Manufacturer Warranty: |
3-year warranty |
-
General
| Device Type: |
UPS - rack-mountable |
| Height (Rack Units): |
2U |
-
Power Device
| Load Rating: |
Small workgroup server |
| UPS Technology: |
Line interactive |
| Input Voltage: |
AC 100/120/127 V |
| Frequency Provided: |
50/60 Hz |
| Frequency Required: |
47 - 70 Hz |
| Input Connectors: |
1 x power NEMA 5-15 |
| Power Output Connectors Details: |
8 x power NEMA 5-15 |
| Output Voltage: |
AC 120 V 50/60 Hz |
| Power Capacity: |
1.44 kW / 1440 VA |
| Output Waveform: |
Sinewave |
| Surge Suppression: |
Yes |
-
Battery
| Technology: |
Lead acid |
| Run Time (Up To): |
3 min at 1440 Watts |
-
Miscellaneous
| Equipment Protection Value: |
150000 US Dollars |
| Features: |
Advance Battery Management (ABM), LCD display, hot-swappable batteries |
-
Manufacturer Warranty
| Service & Support: |
Limited warranty - 3 years |
-
Dimensions & Weight
| Width: |
17.4 in |
| Depth: |
20.6 in |
| Height: |
3.4 in |
| Weight: |
1.04 oz |
-
Special Feature
| COO: |
PHILIPPINES |
| TAA compliance: |
No |
-
UNSPSC Code
