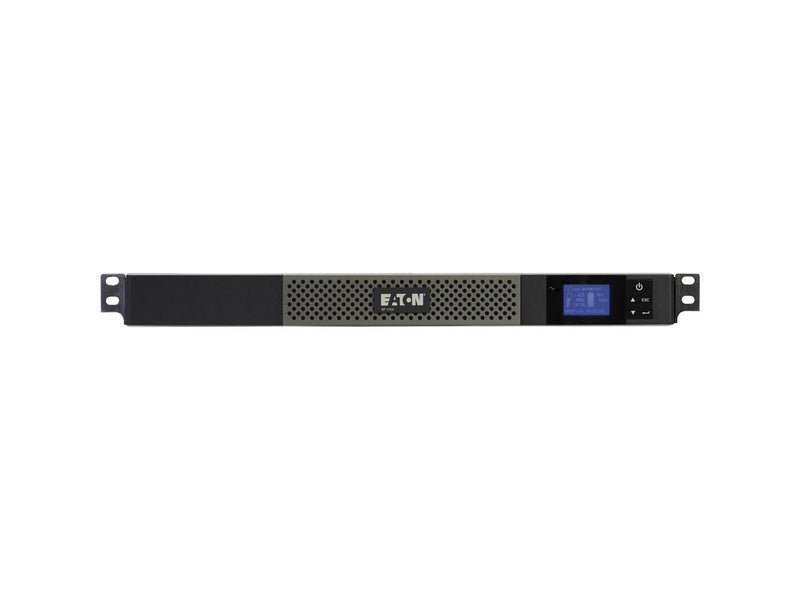

Eaton 5P1500R 1500VA RM 1U LCD 120V

Eaton 5P1500R 1500VA RM 1U LCD 120V

$1,314.65

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P1500R
UPC
743172043061
PRODUCT LENGTH/DEPTH
21.8 in
PRODUCT HEIGHT
1.7 in
PRODUCT WIDTH
17.4 in
PRODUCT WEIGHT
44.1 lb
WARRANTY
3 year on electronics, 3 year on batteries with registration
COMPLIANCES
CE Marked
RoHS Compliant
CERTIFICATIONS
cULus Listed
IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
UL 1778
UL 497A

BATTERY

BATTERY MANAGEMENT
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Sealed, lead-acid
EXTENDED BATTERY CAPABILITY
None; See Eaton 5PX UPS for extended runtimes options

ELECTRICAL OUTPUT

RECEPTACLE
(5) 5-15R
TOPOLOGY
Line-interactive
WATTAGE
1100 W
VA RATING
1440 VA
OUTPUT WAVEFORM
Sine wave
VOLTAGE
120V
OUTPUT POWER FACTOR
0.76
OUTPUT NOMINAL VOLTAGE
120V default (100/120/125V)
OUTPUT VOLTAGE RANGE
102-132 Vac
FEED TYPE
1

ELECTRICAL INPUT

INPUT CONNECTION
5-15P
INPUT CORD LENGTH
6 ft
INPUT NOMINAL VOLTAGE
120V default (100/110/120/125V)
INPUT VOLTAGE RANGE
89-151 Vac (adjustable to 70-153 Vac)
NOMINAL FREQUENCY
50-60 Hz
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
INPUT POWER FACTOR
0.77

COMMUNICATIONS

COMMUNICATION
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
EXPANSION SLOTS
One slot; Gigabit Network Card (Network-M2) is optional
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager
USER INTERFACE
LCD graphical display

ENVIRONMENTAL

ALTITUDE
Up to 10,000 ft (3000m) without de-rating
BTU RATING
Online: 113, Battery 714
NOISE LEVEL
<45 dB at 1 meter
RELATIVE HUMIDITY
0-90% non-condensing
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)

ADDITIONAL SPECIFICATIONS

SPECIAL FEATURES
ROO/RPO: Rear terminal block connector for remote on/off and power off
FORM FACTOR
Rack
RACK SIZE
1U
RACK MOUNTING KIT
Yes
EFFICIENCY
97%
PACKAGE CONTENTS
  • 5P UPS
  • User manual CD
  • Intelligent Power Software Suite CD
  • Quick start guide
  • USB cable
  • RS-232 serial cable
  • 4-post rail kit

WARRANTY AND SUPPORT

STANDARD FACTORY WARRANTY
  • 3-YEAR FACTORY WARRANTY w/ REGISTRATION
  • -3 years
  • -Parts, electronics, and batteries coverage
  • -Standard ground shipping
  • -Technical support
EXTENDED SERVICE PLANS
  • ADVANCED DEPOT EXCHANGE
  • -5-YEAR DEPOT REPAIR: 5SW5Y-1750UC
  • -Expedited parts coverage for 5 years
  • -Parts, electronics and UPS batteries coverage
  • -Next business day shipping
  • -Technical support
  • 5-YEAR ON-SITE PLAN: WFLN75XX-2509UC
  • - On-site parts and labor coverage for years 5
  • - Parts, electronics and UPS batteries coverage
  • - 24x7 on-site labor coverage, next-day response
  • - Next-day shipping
  • - Technical support
