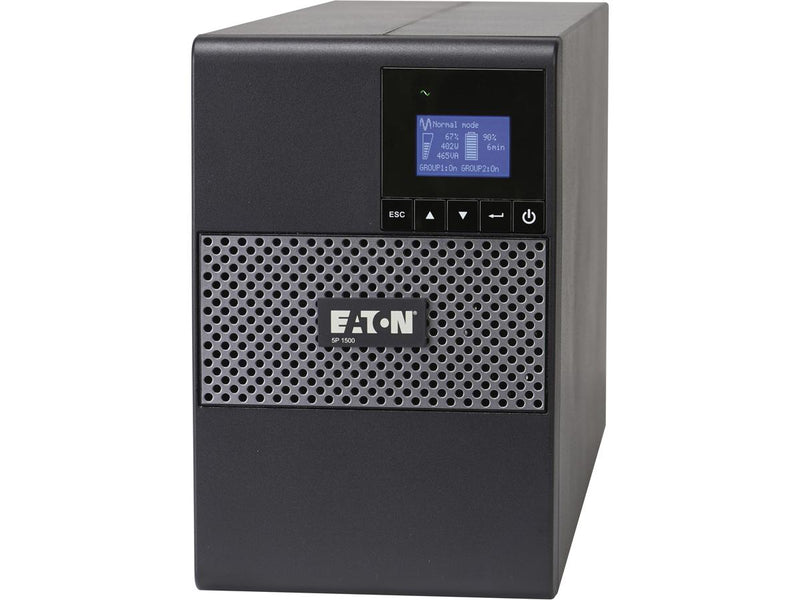

Eaton 5P1500 1500VA Tower LCD 120V

Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.

• Primary Information

  Product Description:	Eaton 5P 1500 Tower - UPS - 1100 Watt - 1440 VA
  Device Type:	UPS - external
  Weight:	0.57 oz
  Input Voltage:	AC 120 V
  Output Voltage:	AC 120 V + 6% / - 10%
  Power Capacity:	1100 Watt / 1440 VA
  Input Connectors:	Power NEMA 5-15P
  Output connectors:	8 x power NEMA 5-15
  Battery:	Lead acid
  Battery Form Factor:	Internal
  Networking:	RS-232, USB
  Color:	Black, silver
  Dimensions (WxDxH):	5.9 in x 17.5 in x 9.1 in
  Environmental Standards:	ENERGY STAR
  Manufacturer Warranty:	3-year warranty

• General

  Device Type:	UPS - external
  Battery Enclosure Type:	Internal
  Color:	Black, silver

• Power Device

  UPS Technology:	Line interactive
  Input Voltage:	AC 120 V
  Input Voltage Range:	AC 89 - 151 V
  Input Voltage Range (Adjustable):	AC 70 - 153 V
  Frequency Provided:	50/60 Hz
  Frequency Required:	47 - 70 Hz
  Input Connectors:	Power NEMA 5-15P
  Power Output Connectors Details:	8 x power NEMA 5-15
  Output Voltage:	AC 120 V + 6% / - 10% - 50/60 Hz
  Power Capacity:	1100 Watt / 1440 VA
  Efficiency:	97%

• Battery

  Technology:	Lead acid
  Features:	Maintenance free, sealed

• Networking

  Remote Management Interface:

  RS-232, USB

• Expansion / Connectivity

  Interfaces:	1 x EPO (emergency power off) - terminal block ¦ 1 x USB ¦ 1 x RS-232
  Expansion Slots:	1 (total) / 1 (free) x Communication slot

• Miscellaneous

  Cables Included:	USB cable - external - 6 ft ¦ Serial cable - external - 6 ft ¦ Power cable - external - 6 ft
  Features:	Advance Battery Management (ABM), LCD display, automatic self-test, Remote Emergency Power Off (REPO), hot-swappable batteries
  Compliant Standards:	CISPR 22 Class B, UL 1778, UL 497A, EN55024, FCC Part 15 B, IEC 62040-2, RoHS

• Software / System Requirements

  Software Included:

  Intelligent Power Software Suite

• Sustainability Information

  ENERGY STAR:

  Yes

• Manufacturer Warranty

  Service & Support:

  Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	0 - 90% (non-condensing)
  Sound Emission:	45 dBA

• Dimensions & Weight

  Width:	5.9 in
  Depth:	17.5 in
  Height:	9.1 in
  Weight:	0.57 oz

• Special Feature

  COO:	PHILIPPINES
  TAA compliance:	No

• UNSPSC Code

  UNSPSC Code:

  39121011
