Product Overview
The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier. VCA's inserted prior to amplification provide a far more efficient solution than transformer-based attenuators for volume adjustment in high power music applications. The dual channel design can provide level control for two separate discrete zones or stereo sources and is perfect for use in sports bars, restaurants, hotels or other installations.
The TSD-ML22VCA also provides two high quality, low noise mic pre-amps, which allow simplification of designs that require remote microphone level adjustment. Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum.
Main Features
- 2 input, 2 output true VCA design
- High quality microphone pre-amplifier
- Efficient volume adjustment for high power music
- Dual channel for discrete zones or stereo sources
- Ideal for sports bars, restaurants, and hotels
- Low noise mic pre-amps for remote adjustment
- Switchable phantom power for condenser mics
- 12dB/octave high pass filter to reduce bass rumble
General Information

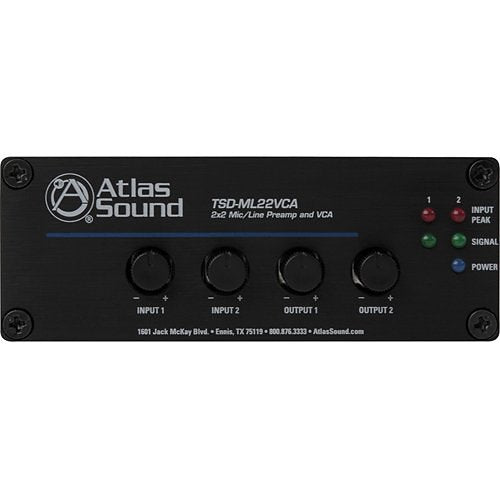

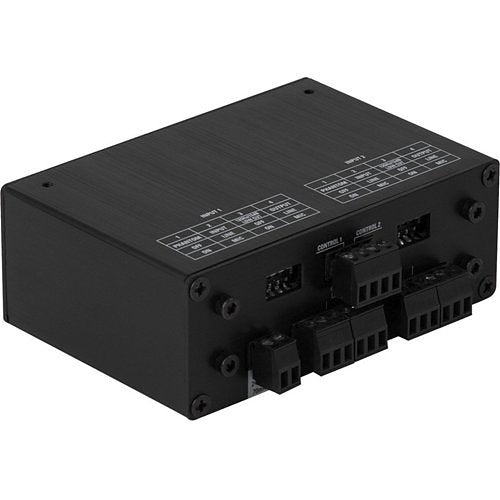

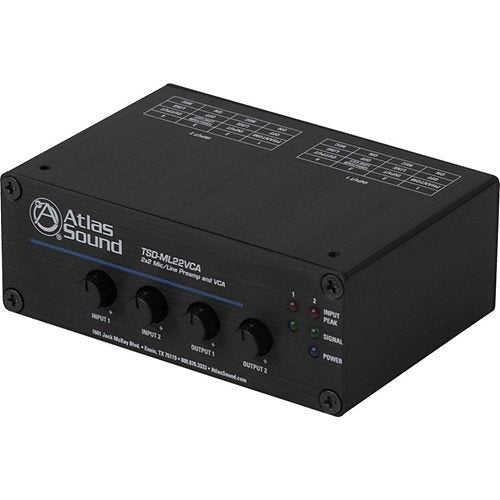

Name: AtlasIED TSD-ML22VCA Input Output Mic Line Preamp and Voltage Controlled Amplifier
Category: AtlasIED, Pro AV, Commercial Audio, Pro Microphones, Headphones & Headsets
UPC Code: 612079187836
Country of Origin: . Country of origin is subject to change.
