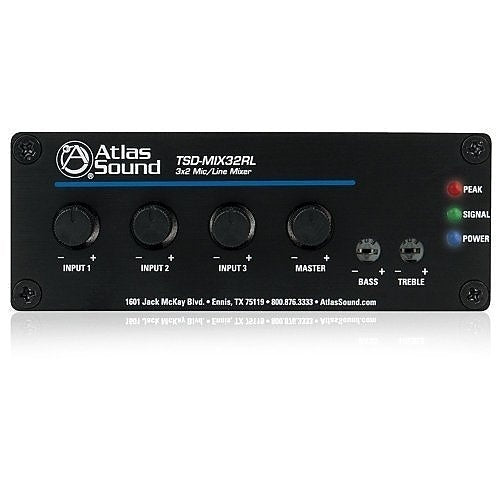

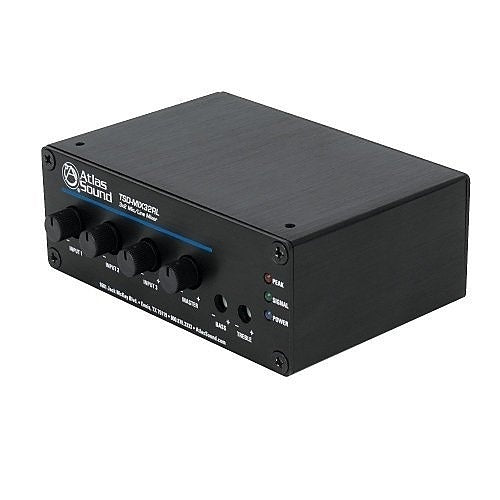

AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level
AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level
AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level
AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level

AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level

$371.20

Product Overview

The AtlasIED TSD-MIX32RL is a 3x2 stereo line mixer with Remote level control. It is ideal for applications where multiple stereo line sources need to be combined into a preamp utilizing the local or remote Master level control. The unit can be easily interfaced with AtlasIED amplifiers. Applications include restaurants, conference rooms, and schools.

Additional on board EQ can be done utilizing the Base control (100Hz ±6db) and Treble control (10kHz ±6dB). The TSD-MIX32RL uses high quality, low noise components to ensure clarity and quiet operation without unwanted coloration.

Main Features

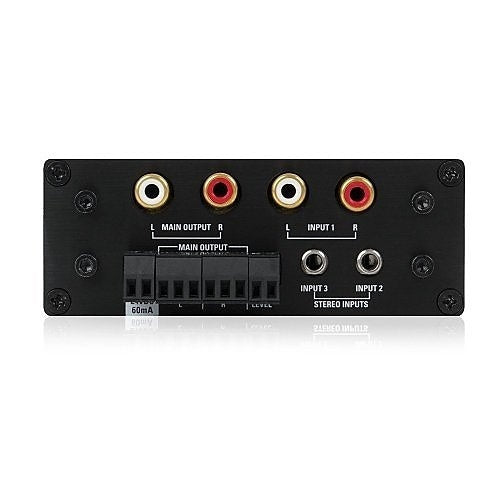

  • Three Stereo Unbalanced Line Inputs, One Set of RCA and Two 3.5 mm
  • Balanced Line Outputs Left & Right
  • Unbalanced Line Outputs Left & Right
  • Base & Treble Controls ±6dB
  • Remote Master Level Control
  • High Gain Output for Driving Long Balanced Lines
  • Input Signal Indicator LEDs, Qty 3
  • Output Peak & Signal Indicator LEDs
  • Separate Ground Connections

General Information

Name: AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level
Category: AtlasIED, Pro AV, Commercial Audio, Pro Audio Mixers
UPC Code: 612079189458
Country of Origin: China. Country of origin is subject to change.
