The Atlas Sound TSD-DA13 1x3 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows a balanced mic or line level source to be distributed to three isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities.
A high quality, low noise mic pre-amp, defeatable 3dB low cut filter @ 125Hz and dual summing RCA line level inputs are included as part of the unit's input section. These features combined with the 3 mic / line level outputs allow for multiple configuration.
Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device.

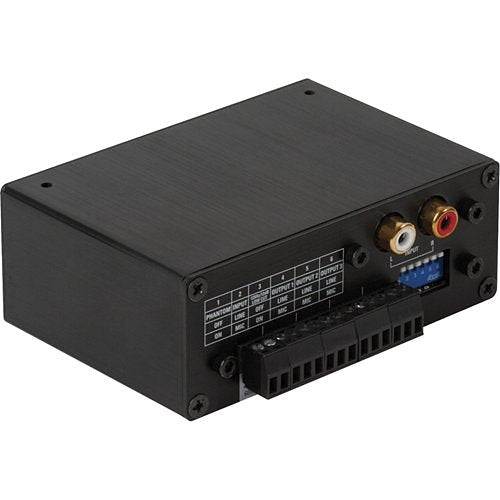

All I/O (except the summing RCA inputs) is via Phoenix style connectors for installation convenience.
The TSD-DA13 is highly efficient and meets Energy Star™ standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.

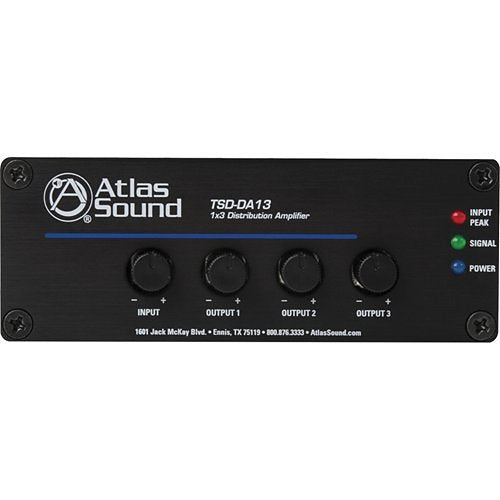

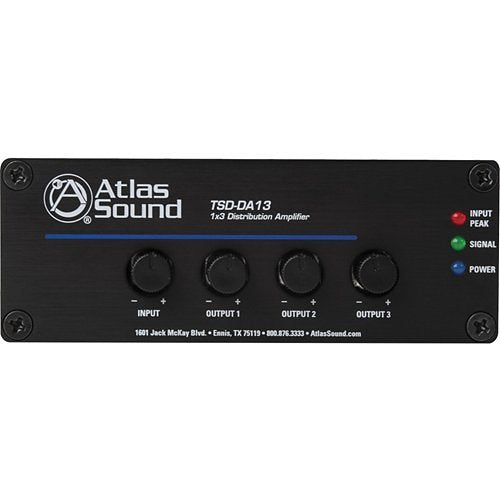

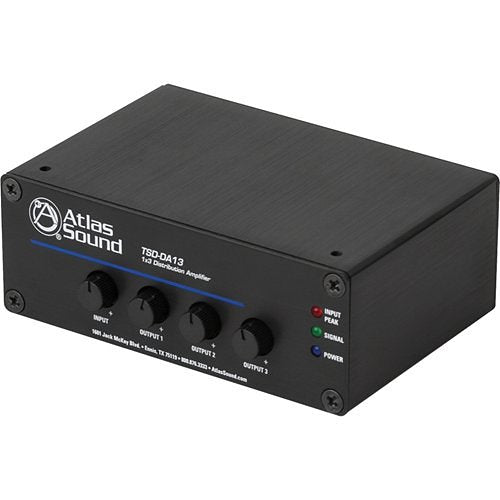

Name: AtlasIED TSD-DA13 1x3 Distribution Amplifier
Category: AtlasIED, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 612079187768
Country of Origin: . Country of origin is subject to change.
