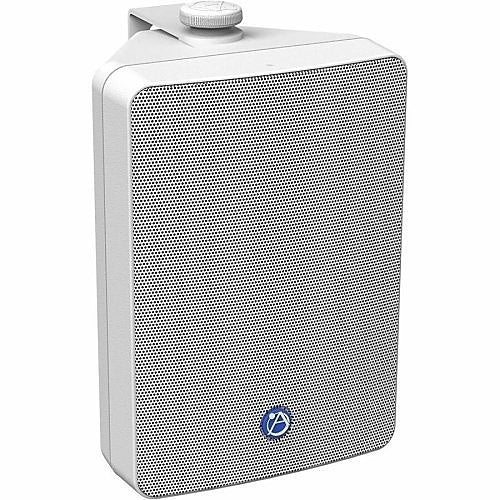

AtlasIED SM63T-WH 6.5" 2-Way All Weather Speaker with 32-Watt 70V/100V Transformer, White

AtlasIED SM63T-WH 6.5" 2-Way All Weather Speaker with 32-Watt 70V/100V Transformer, White

$565.50

Product Overview

Applications

Use surface-mount Atlas Sound SM63T-B and SM63T-WH loudspeaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance are desired. Full-range frequency response makes these systems ideal for indoor or outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, leisure, recreation/sports centers, and houses of worship. Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.

General Description

Environment-resistant SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and Ferrofluid cooled, polymer reinforced linen composite dome high frequency device. This design provides smooth, even sound coverage (120° conical). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the Atlas Sound PolyGuard™ protection circuit. The SM63T includes an internally mounted 32-watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 8Ω operation.

Main Features

  • Compact, 2-way loudspeaker systems for exceptional performance in music and sound reinforcement systems
  • Weather-resistant construction for year-round indoor or outdoor use
  • UV-resistant-talc-impregnated-polypropylene injection molded enclosure, powder coated aluminum grilles and all brass hardware inserts
  • Conforms to 100HR salt spray test per ASTM B117
  • Color matched heavy-duty zinc plated and powder coated "C" bracket (included)
  • Highly efficient 61 /2" water resistant, composite cone woofer
  • 20mm FerroFluid™ cooled dome tweeter
  • Atlas Sound POLYGUARD™ high frequency circuit diverts damaging transient signals to protect the tweeter
  • All 1 /4"-20 hardware inserts allow easy integration of "off-the-shelf" security hardware
  • Screwdriver adjustable 32-Watt 70.7V / 100V Transformer for distributed sound applications. (Includes Transformer bypass setting for direct coupled 8Ω operation)

General Information

Name: AtlasIED SM63T-WH 6.5" 2-Way All Weather Speaker with 32-Watt 70V/100V Transformer, White
Category: AtlasIED, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 612079663088
Country of Origin: China. Country of origin is subject to change.
