Product Overview
Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with Atlas Sound PD Series compression drivers and models having 13/8" -18 male threads and 0.707" dia. throat openings. Features Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia. High-Efficiency Bi-Axial Horn Provides 130° x 60° Wide-Angle Sound Coverage Nominal Frequency Response of 350-8,000 Hz for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications Patented 180° Gimbal-Mount for Installation Flexibility
Main Features
- Accepts All Atlas Sound and 1 3/8 - 18 Thread Compression Drivers with Throat Openings of 0.7 Dia.
- High-Efficiency Bi-Axial Horn Provides 130° x 60°Wide-Angle Sound Coverage
- Nominal Frequency Response of 350-8,000 Hz for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications
General Information

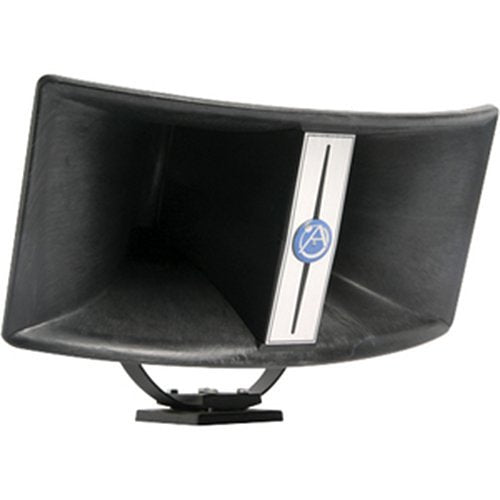

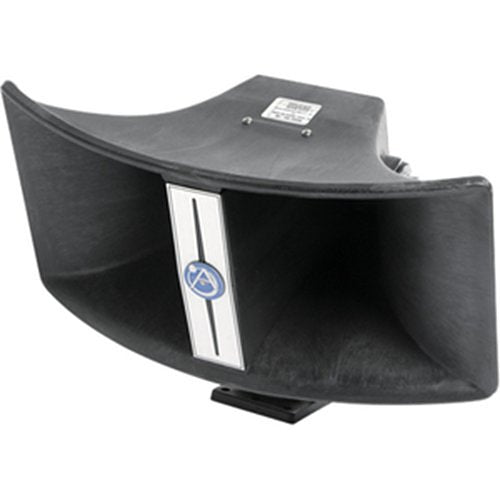

Name: AtlasIED BIA-100 Bi-Axial Horn Speaker with Twin Reflex Air Column
Category: AtlasIED, Pro AV, Commercial Audio, Pro PA Horns & Megaphones
UPC Code: 612079111190
Country of Origin: United States. Country of origin is subject to change.
