Product Overview

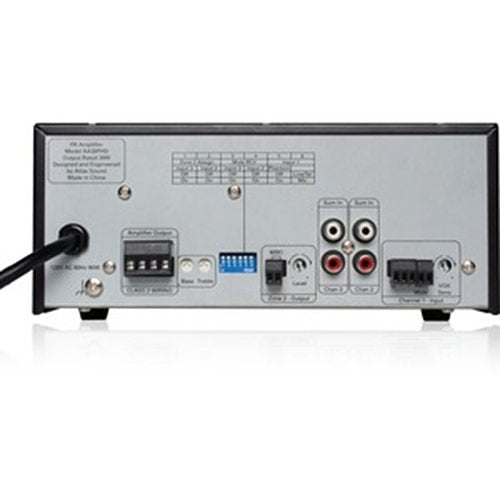

The AA30PHD is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and two stereo line inputs, the AA30PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. What Sets the AAPHD Series Apart? The AA30PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8?, and the loudspeaker wire is free from shorts. The AA30PHD provides 30-watts output power into 25V, 70.7V, or 4? loudspeaker systems. Rear panel DIP switch allows for creation of Zone 2 output using either Input 2 or Input 3. Unit can also be set-up to mute Inputs 2 and 3 based on signal from Input 1 for paging applications where other input sources need to be muted during a page. Input 1 is either Mic or Line input selectable and Phantom Power is an option when using Input 1 Mic input. Features 30W into 25V/70.7V and 4Ω Loads Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3 Contact Closure Mute Terminals Variable Mute Sensitivity Control for Input 1 Two Unbalanced, Summing Line Level Inputs Balanced Mic/Line/Tel Input w/ Phantom Power Automated Diagnostic System Test (Push Here Diagnostic)
Main Features
- Increases the strength of aWeak electrical signal without affecting other characteristics
- Listen to deep lows and extreme highs maintaining 15 kHz maximum frequency
- The sound moves around at 4omhs impedance - a joyful journey to audio pitching and loudness, both
- Showcases 3 audio channels
- Two Unbalanced, Summing Line Level Inputs
- Balanced Mic/Line/Tel Input w/ Phantom Power
- Automated Diagnostic System Test (Push Here Diagnostic)
General Information

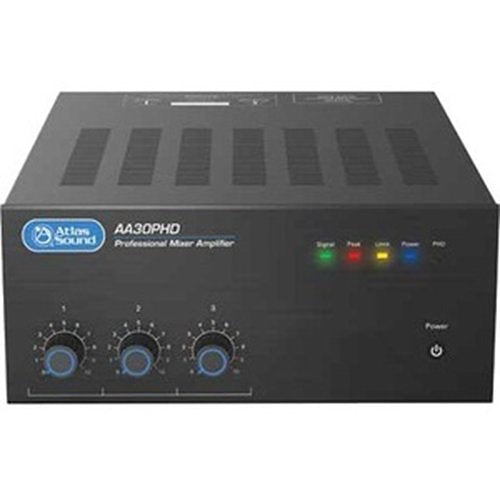

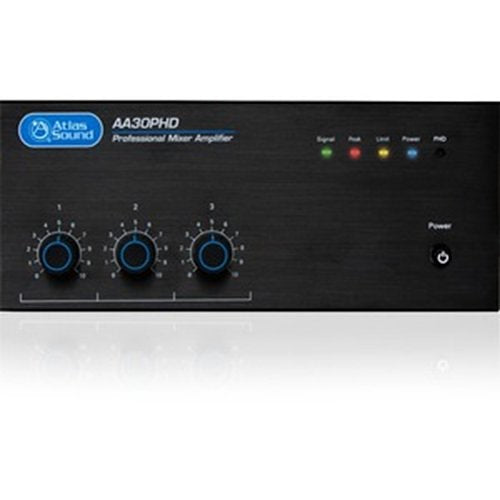

Name: AtlasIED AA30PHD 3-Input, 30W Mixer Amplifier with Automatic System Test (PHD)
Category: AtlasIED, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 612079190836
Country of Origin: China. Country of origin is subject to change.
