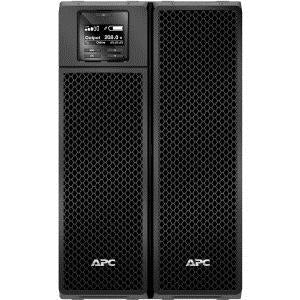

APC Smart-UPS SRT 10000VA 208V TAA

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT10KXLTUS
Manufacturer Website Address: www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS SRT 10000VA 208V TAA
Marketing Information:

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

More from the Manufacturer

Product Type: Dual Conversion Online UPS

Technical Information

Plug/Connector Type: Hard Wire 3-wire (2PH + G)
Receptacles: 1 x Hard Wire 3-wire (2PH + G)
Receptacles: 2 x NEMA L6-30R
Receptacles: 4 x NEMA L6-20R
Application/Usage: Industrial
Application/Usage: Medical Equipment
Application/Usage: Server
Application/Usage: Voice/Data Network

Power Description

Load Capacity: 10000 VA/10 kW
Input Voltage: 230 V AC
Input Voltage Range: 160 V AC - 275 V AC
Output Voltage: 208 V AC
Waveform Type: Sine Wave

Management

Network Management: SNMP Manageable

Interfaces/Ports

Network (RJ-45): Yes

Battery Information

Backup/Run Time (Full Load): 3.70 Minute
Backup/Run Time (Half Load): 11.40 Minute
Typical Battery Recharge Time: 1.50 Hour

Physical Characteristics

Height: 17"
Width: 10.4"
Depth: 28.2"
Weight (Approximate): 246 lb

Miscellaneous

Package Contents:

• Smart-UPS SRT 10000VA 208V TAA
• CD with Software
• Documentation CD
• Installation Guide
• Temperature Probe
• USB Cable
• Warranty Card
• Web/SNMP Management Card

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: REACH
TAA Compliant: Yes

Warranty

Limited Warranty: 3 Year
